NCP1607BDR2G - onsemi

Description: Pin to Pin Compatible with Industry Standards; Programmable Overvoltage Protection; Built-in Under Voltage Protection; High Precision Voltage Reference (1.6% over the Supply Voltage and Temperature Range); Very Low Startup Current Consumption ( 40 uA); Low Typical Operating Current (2.1 mA); +500 mA / -800 mA Totem Pole Gate Driver

Download NCP1607BDR2G Model

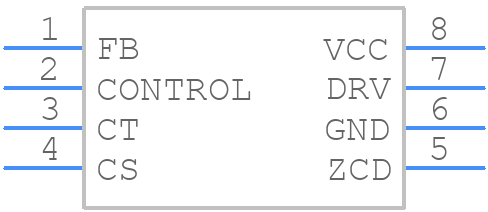

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1607BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 CASE 751-07 ISSUE AJ
click to zoom
3D Models
NCP1607BDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 CASE 751-07 ISSUE AJ
click to zoom

NCP1607BDR2G Details

  • Manufacturer Part Number:

    NCP1607BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    3

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    10.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1607BDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1607BDR2G should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
  • To ensure reliable start-up, ensure that the input voltage is within the specified range, and the output capacitor is properly sized to handle the inrush current. Also, add a soft-start circuit or a ramp-up circuit to the enable pin to prevent inrush current issues.
  • The maximum allowed input voltage ripple for the NCP1607BDR2G is 10% of the nominal input voltage. Exceeding this limit may affect the converter's stability and efficiency.
  • While it's possible to use a different inductor value or type, it's not recommended as it may affect the converter's performance, efficiency, and stability. The recommended inductor value and type are carefully selected to ensure optimal performance.
  • To troubleshoot issues, start by verifying the PCB layout, component values, and soldering quality. Check for signs of overheating, and ensure that the input voltage and output load are within the specified ranges. Use an oscilloscope to analyze the waveforms and identify any anomalies.
