NCP1611ADR2G - onsemi

Description: Near Unity Power Factor; Critical Conduction mode with current controlled frequency foldback; Dynamic Response Enhancer; Soft Overvoltage Protection (S-OVP); -500 mA/+800 mA Drive Capability; Valley Turn On; Wide Vcc Range of 9.5-35V; Two Vcc Startup Versions: 10.5V (A) and 17V (B); AC Line Brownout Detection; Cycle-by-cycle current protection; Saturated Inductor and shorted boost or bypass protection; Open Pin Protection including Ground; Undervoltage and Fast Over voltage protection

Download NCP1611ADR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

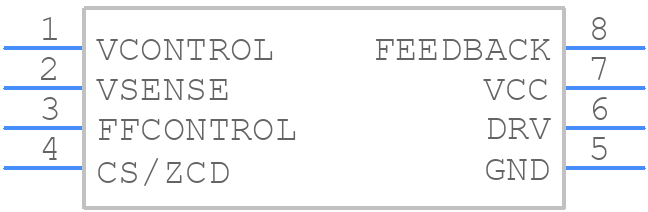

Symbol
NCP1611ADR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1611ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB
click to zoom
3D Models
NCP1611ADR2G - onsemi - 3D model - Small Outline Packages - SOIC-8 NB
click to zoom

NCP1611ADR2G Details

  • Manufacturer Part Number:

    NCP1611ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    35 V

  • Input Voltage-Min:

    9.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    3 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1611ADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1611ADR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A ceramic capacitor with an X7R or X5R dielectric is recommended. The capacitance value should be chosen based on the desired output ripple voltage and the output current.
  • The maximum ambient temperature range for the NCP1611ADR2G is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • To ensure stability, the NCP1611ADR2G requires a minimum output capacitance of 10uF with an ESR of less than 1 ohm. The input and output capacitors should be placed close to the IC, and the PCB layout should be designed to minimize the loop area and reduce noise.
  • The maximum output current of the NCP1611ADR2G is 1.5A. However, the device can deliver up to 2A peak current for short durations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1611ADR2G Overview

Use the download button to access the NCP1611ADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP16, or try a keyword search, such as Switching Regulator or Controllers
