Description:Near Unity Power Factor; Critical conduction mode with current controlled frequency foldback; Dynamic Response Enhancer; Soft Overvoltage Protection; -500 mA/+800 mA Drive Capability; Valley turn on; Wide Vcc Range of 9.5-35 Vdc; Two Vcc startup versions: 10.5 V (A) and 17 V (B); AC Line Brownout Detection; Cycle-by-cycle switch current monitoring; Saturated inductor and shorted boost or bypass diode detection; PFC Okay Output; Latch Off Input; Independent bulk overvoltage and undervoltage monitoring; Therm
A good PCB layout for the NCP1612A1DR2G should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) between VIN and GND. Additionally, keep the input and output capacitors close to the IC and use short, wide traces for the power lines.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. A good starting point is a 10uF input capacitor and a 22uF output capacitor.
The NCP1612A1DR2G is rated for operation from -40°C to +125°C ambient temperature. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's performance at high temperatures.
Yes, the NCP1612A1DR2G is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade ICs. However, ensure that your design meets the specific requirements of your application, including temperature range, vibration, and other environmental factors.
To troubleshoot issues with the NCP1612A1DR2G, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and component selection. Use an oscilloscope to monitor the output voltage and current. If issues persist, consult the datasheet and application notes or contact onsemi support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1612A1DR2G Overview

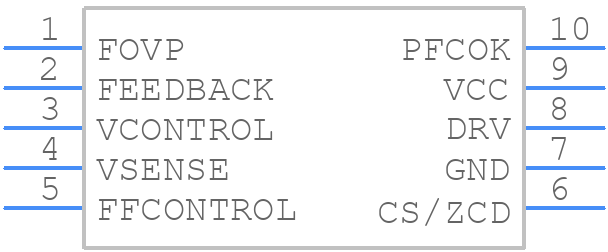

Use the download button to access the NCP1612A1DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP16,
or try a keyword search, such as Switching Regulator or Controllers
