NCP1631DR2G - onsemi

Description: 180° out of phase operation; Frequency foldback at low power; Integrated overcurrent protection, overvoltage protection, UVLO, and brown-out protection; Frequency clamped critical conduction mode (FcCrM) operation

Download NCP1631DR2G Model
Schematic

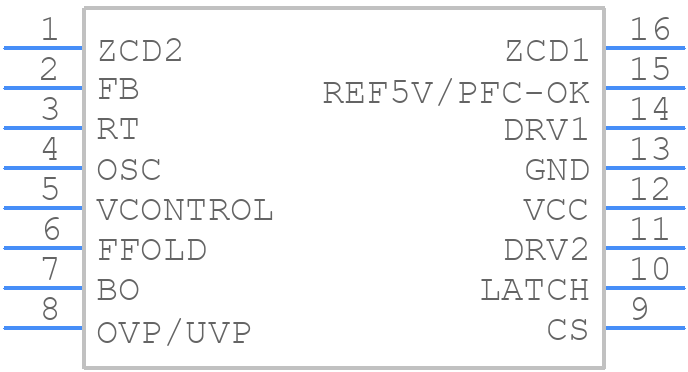

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1631DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom
3D Models
NCP1631DR2G - onsemi  - 3D model - Small Outline Packages - SO-16 CASE 751B-05 ISSUE K
click to zoom

NCP1631DR2G Details

  • Manufacturer Part Number:

    NCP1631DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    22 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.8

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    10.5 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    130 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1631DR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP1631DR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces connecting the input and output pins. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure the output capacitor is properly sized and placed close to the IC. Also, ensure the input voltage is within the recommended range, and the input capacitor is properly sized and placed close to the IC. Additionally, avoid using long traces or wires between the input and output pins.
  • The maximum ambient temperature range for the NCP1631DR2G is -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the NCP1631DR2G is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
  • To troubleshoot issues with the NCP1631DR2G, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly sized and placed. Check for any signs of overheating, and ensure the device is operated within its specified parameters. If the issue persists, consult the datasheet and application notes for further guidance.
