NCP164AMT120TAG - onsemi

Description: 1.6V to 5.5V input voltage; PSRR: 85 dB at 1 kHz; Low VDO at 2.8V @80mV max dropout; Ultra-Low Noise: 9µVRMS; WDFN6_2 x 2mm & TSOP-5

Download NCP164AMT120TAG Model

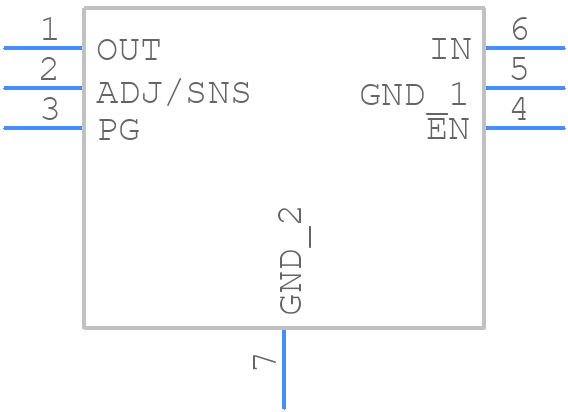

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP164AMT120TAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511BR ISSUE C
click to zoom
3D Models
NCP164AMT120TAG - onsemi  - 3D model - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511BR ISSUE C
click to zoom

NCP164AMT120TAG Details

  • Manufacturer Part Number:

    NCP164AMT120TAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Manufacturer Package Code:

    511BR

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Nom:

    0.5 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.6 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Load Regulation-Max:

    0.002%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    1.224 V

  • Output Voltage1-Min:

    1.176 V

  • Output Voltage1-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2%

  • Width:

    2 mm

NCP164AMT120TAG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the copper traces wide and short can help to reduce thermal resistance.
  • To ensure reliable start-up of the converter, it is recommended to add a soft-start circuit to limit the inrush current during start-up. Additionally, ensuring that the input voltage is within the specified range and that the output capacitor is properly sized can also help to ensure reliable start-up.
  • The maximum allowed output capacitance for the NCP164AMT120TAG is not explicitly stated in the datasheet, but it is generally recommended to keep the output capacitance below 100uF to avoid stability issues. However, the actual maximum allowed capacitance will depend on the specific application and operating conditions.
  • To troubleshoot oscillations or instability in the converter, check for proper PCB layout, ensure that the input and output capacitors are properly sized and placed, and verify that the feedback loop is properly compensated. Additionally, checking for noise on the input or output lines and ensuring that the device is operated within the specified temperature range can also help to identify the root cause of the issue.
  • The recommended input capacitor type for the NCP164AMT120TAG is a low-ESR ceramic capacitor, such as an X5R or X7R dielectric. The recommended value is typically in the range of 10uF to 22uF, depending on the specific application and operating conditions.
