NCP164AMT330TAG footprint, schematic symbol and 3D model by onsemi

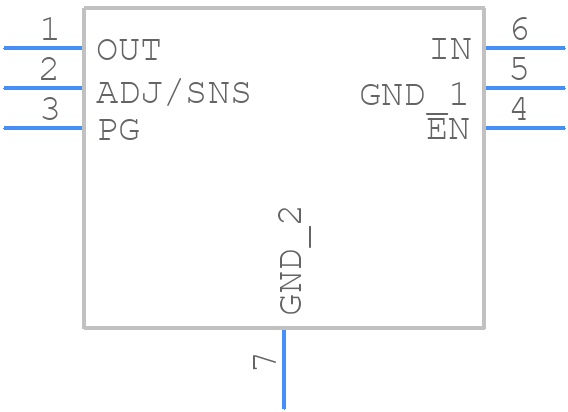

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCP164AMT330TAG
Part Number NCP164AMT330TAG
Manufacturer onsemi
Pin Count 7
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - WDFN6
Released Date Nov 12, 2021
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

NCP164AMT330TAG Details

Manufacturer Part Number:
NCP164AMT330TAG
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
WDFN-6
Manufacturer Package Code:
511BR
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
YTEOL:
7.7
Adjustability:
FIXED
Dropout Voltage1-Max:
0.17 V
Dropout Voltage1-Nom:
0.11 V
Input Voltage Absolute-Max:
6 V
Input Voltage-Max:
5.5 V
Input Voltage-Min:
3.8 V
JESD-30 Code:
S-PDSO-N6
JESD-609 Code:
e3
Length:
2 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.3 A
Output Voltage1-Max:
3.366 V
Output Voltage1-Min:
3.234 V
Output Voltage1-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC6,.08,25
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
2 mm

NCP164AMT330TAG Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A minimum of 2oz copper thickness is recommended for the thermal pad.
To ensure reliable start-up, it is recommended to add a soft-start circuit to limit the inrush current during start-up, and to ensure that the input voltage is within the specified range. Additionally, the output voltage should be monitored to ensure it reaches the desired level before enabling the load.
The maximum allowed capacitance on the output of the converter is 220uF. Exceeding this value may cause instability or oscillations in the converter.
To protect the converter from input voltage transients and surges, it is recommended to add a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input of the converter. This will help to absorb or clamp the transient voltage and prevent damage to the device.
The recommended input filter configuration to minimize EMI emissions involves adding a pi-filter (L-C-L) or a common-mode choke at the input of the converter. This will help to attenuate the high-frequency noise and reduce EMI emissions.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NCP164AMT330TAG Overview

Use the download button to access the NCP164AMT330TAG schematic symbol, PCB footprint, and 3D model.
