NCP164AMTADJTAG - onsemi

Description: 1.6V to 5.5V input voltage; PSRR: 85 dB at 1 kHz; Low VDO at 2.8V @80mV max dropout; Ultra-Low Noise: 9µVRMS; WDFN6_2 x 2mm & TSOP-5

Download NCP164AMTADJTAG Model

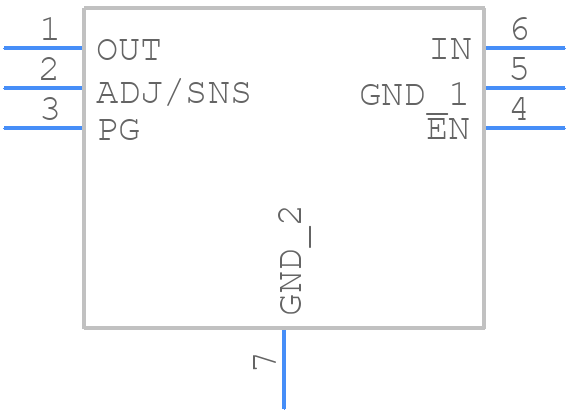

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP164AMTADJTAG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN6
click to zoom
3D Models
NCP164AMTADJTAG - onsemi  - 3D model - Small Outline No-lead - WDFN6
click to zoom

NCP164AMTADJTAG Details

  • Manufacturer Part Number:

    NCP164AMTADJTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Manufacturer Package Code:

    511BR

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustability:

    ADJUSTABLE

  • Input-Output Voltage Differential-Max:

    3.9 V

  • Input-Output Voltage Differential-Min:

    0.5 V

  • JESD-30 Code:

    S-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.3 A

  • Output Voltage1-Max:

    1.122 V

  • Output Voltage1-Min:

    1.078 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NCP164AMTADJTAG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP164AMTADJTAG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces to reduce parasitic inductance and capacitance.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1-10uF, while the output capacitor should be a low-ESR ceramic or electrolytic capacitor with a value between 10-100uF. The capacitor values and types should be chosen based on the specific application requirements and operating conditions.
  • The NCP164AMTADJTAG is rated for operation from -40°C to +125°C, but the maximum ambient temperature range may be limited by the specific application and operating conditions.
  • The output voltage of the NCP164AMTADJTAG can be adjusted by using a resistor divider network between the VOUT pin and the ADJ pin, with the resistor values chosen to set the desired output voltage.
  • The NCP164AMTADJTAG is capable of delivering up to 1.5A of output current, but the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations.
