NCP1654BD65R2G - onsemi

Description: Continuous Conduction Mode; Average Current-Mode or Peak Current-Mode Operation; Very Few External Components; Programmable Overcurrent Protection; Programmable Overpower Limitation; BrownOut Detection; Overvoltage Protection; Undervoltage Detection for Open Loop Detection (shutdown); Inrush Currents Detection; Soft Start

Download NCP1654BD65R2G Model

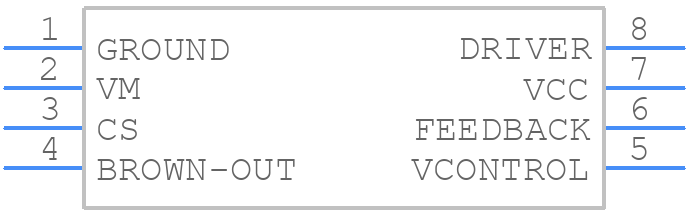

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP1654BD65R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 NB_2022
click to zoom
3D Models
NCP1654BD65R2G - onsemi  - 3D model - Small Outline Packages - SOIC−8 NB_2022
click to zoom

NCP1654BD65R2G Details

  • Manufacturer Part Number:

    NCP1654BD65R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.8

  • Additional Feature:

    CAN ALSO BE CONFIGURED IN AVERAGE CURRENT

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    9.75 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    6 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    220 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP1654BD65R2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable start-up in a noisy environment, it's recommended to add a soft-start circuit to limit the inrush current and to use a high-quality input capacitor to filter out noise. Additionally, consider adding a voltage supervisor to monitor the input voltage and ensure the converter starts up only when the input voltage is within the specified range.
  • The maximum allowed capacitance for the output capacitor depends on the specific application and the desired output voltage ripple. As a general guideline, the output capacitance should be limited to 10uF to 22uF to avoid stability issues. However, it's recommended to consult the datasheet and application notes for specific guidance.
  • To optimize the design for low standby power consumption, consider using a low-quiescent-current regulator, such as the NCP1654, and ensure that the input voltage is within the specified range. Additionally, consider using a low-power mode or shutdown feature to reduce power consumption when the converter is not in use.
  • The recommended components for the feedback network depend on the specific application and the desired output voltage. As a general guideline, a resistive divider with a ratio of 1:1 to 1:3 is recommended, with a total resistance of 1kΩ to 10kΩ. However, it's recommended to consult the datasheet and application notes for specific guidance.
