NCP1680AAD1R2G - onsemi

Description: Totem Pole PFC Topology Eliminates Input Diode Bridge; Critical Conduction Mode (CrM) Operation; Discontinuous Conduction Mode (DCM) with Valley Turn On Under Light Load Condition; Frequency Foldback in DCM With 25 kHz Minimum Frequency; Skip Mode in Very Light Load Condition; Proprietary Current Sense Scheme; Digital Voltage Loop Compensation; AC Line Monitoring Circuit & AC Phase Detection; Near Unity Power Factor in All Operating Modes; PFC OK Indicator

Download NCP1680AAD1R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

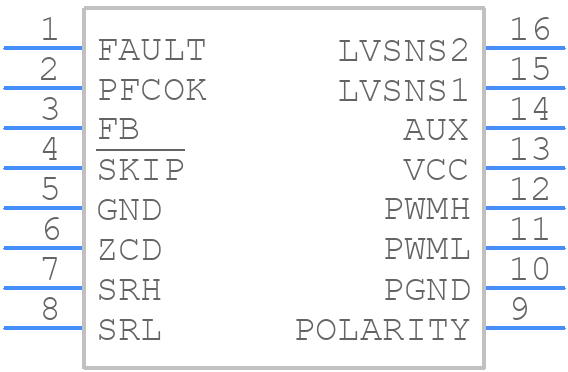

NCP1680AAD1R2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP1680AAD1R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-
click to zoom
3D Models
NCP1680AAD1R2G - onsemi - 3D model - Small Outline Packages - SOIC-
click to zoom

NCP1680AAD1R2G Details

  • Manufacturer Part Number:

    NCP1680AAD1R2G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    POWER FACTOR CONTROLLER

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP1680AAD1R2G Overview

Use the download button to access the NCP1680AAD1R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP16, or try a keyword search, such as Switching Regulator or Controllers
