Description:Totem Pole PFC Topology Eliminates Input Diode Bridge; Continuous Conduction Mode (CCM) Operation At High Power Level; Optional Multi-mode Operation With CCM at High Power & CrM at Medium Power Level; Frequency Foldback in DCM With 25 kHz Minimum Frequency; Skip Mode in Very Light Load Condition; Novel Current Sense Scheme; Digital Voltage Loop Compensation; AC Line Monitoring Circuit & AC Phase Detection; Near Unity Power Factor in All Operating Modes; PFC OK Indicator
The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently and reduce thermal resistance.
To ensure reliable startup and shutdown of the NCP1681AAD2R2G, it is recommended to follow a soft-start sequence, where the input voltage is ramped up slowly to prevent inrush currents. Additionally, a capacitor should be placed between the VIN and GND pins to filter out noise and ensure a clean startup.
The maximum allowed input voltage ripple for the NCP1681AAD2R2G is 10% of the nominal input voltage. Exceeding this limit may affect the device's performance and reliability.
The NCP1681AAD2R2G is rated for operation up to 125°C, but it is recommended to derate the output current and input voltage to ensure reliable operation at high temperatures. Additionally, the device should be mounted on a heat sink to dissipate heat efficiently.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output current, and feedback resistors for any errors or misconfigurations. Also, ensure that the device is properly decoupled and that the output capacitor is of sufficient value and type.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP1681AAD2R2G Overview

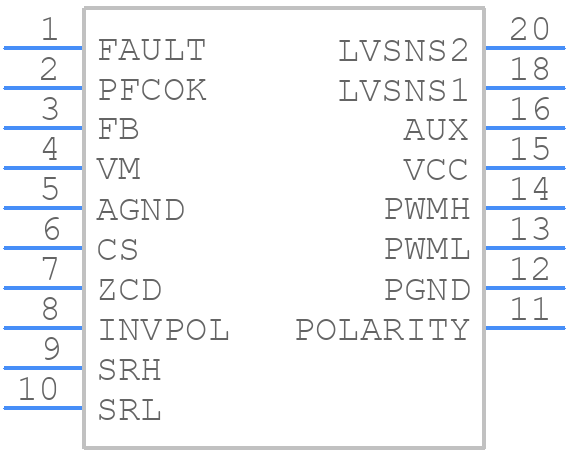

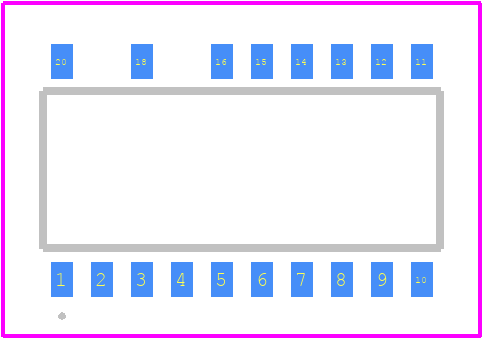

Use the download button to access the NCP1681AAD2R2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP16,
or try a keyword search, such as Switching Regulator or Controllers
