NCP1681ABD2R2G - onsemi

Description: Totem Pole PFC Topology Eliminates Input Diode Bridge; Continuous Conduction Mode (CCM) Operation At High Power Level; Optional Multi-mode Operation With CCM at High Power & CrM at Medium Power Level; Frequency Foldback in DCM With 25 kHz Minimum Frequency; Skip Mode in Very Light Load Condition; Novel Current Sense Scheme; Digital Voltage Loop Compensation; AC Line Monitoring Circuit & AC Phase Detection; Near Unity Power Factor in All Operating Modes; PFC OK Indicator

Download NCP1681ABD2R2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

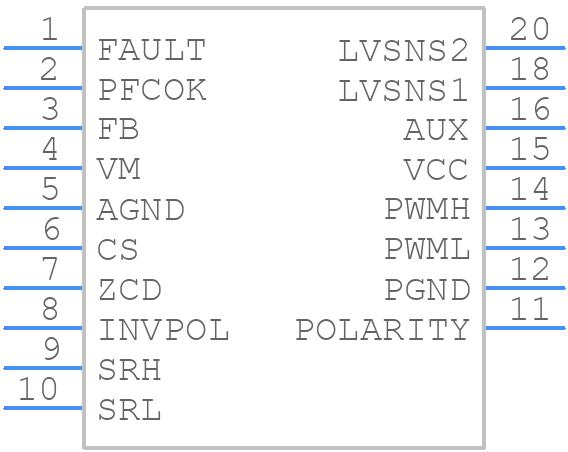

NCP1681ABD2R2G - onsemi - PCB symbol
click to zoom
PCB Footprints

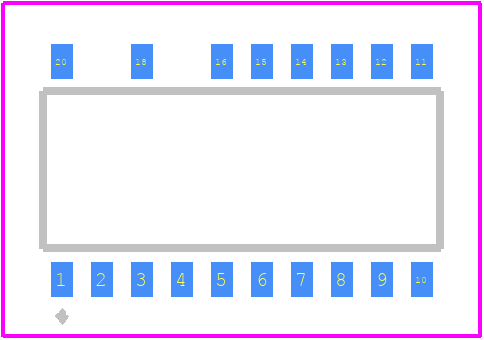

NCP1681ABD2R2G - onsemi PCB footprint - Other - Other - NCP1681ABD2R2G-4
