NCP186AMX300TAG - onsemi

Description: 1.8 V to 5.5 V Operating Input Voltage Range; Several Fixed Output Voltage Options and others available upon request in range from 1.2 V to 3.9 V; Low Quiescent Current of Typ. 90 µA; Very Low Dropout: 100 mV Typ. at Iout = 1 A (3.0V version); High 75 dB at 1 kHz PSRR; Internal Soft-Start; ±1.0% Accuracy in -40 to 85degC temperature range; Thermal Shutdown and Current Limit Protections; Stable with Small 1 µF Ceramic Capacitors

Download NCP186AMX300TAG Model

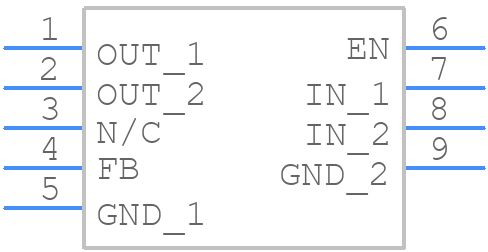

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP186AMX300TAG - onsemi PCB footprint - Other - Other - XDFN8 1.6x1.2, 0.4P CASE 711AS ISSUE D_2023
click to zoom
3D Models
NCP186AMX300TAG - onsemi  - 3D model - Other - XDFN8 1.6x1.2, 0.4P CASE 711AS ISSUE D_2023
click to zoom

NCP186AMX300TAG Details

  • Manufacturer Part Number:

    NCP186AMX300TAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    XDFN-8

  • Manufacturer Package Code:

    711AS

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.16 V

  • Dropout Voltage1-Nom:

    0.1 V

  • Input Voltage Absolute-Max:

    6 V

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3.5 V

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    1.6 mm

  • Line Regulation-Max:

    0.0111%

  • Load Regulation-Max:

    0.005%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    1 A

  • Output Voltage1-Max:

    3.03 V

  • Output Voltage1-Min:

    2.94 V

  • Output Voltage1-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.05,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.45 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    1%

  • Width:

    1.2 mm

NCP186AMX300TAG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of any obstacles.
  • To ensure reliable start-up and shutdown, ensure that the input voltage rises and falls monotonically, and that the input voltage is within the recommended operating range. Also, ensure that the output capacitor is properly sized and placed close to the device to minimize inrush current and voltage overshoot.
  • The recommended input capacitor value is 10uF to 22uF, with an X5R or X7R dielectric. The capacitor should be placed as close to the device as possible, and should have a voltage rating of at least 25V.
  • The NCP186AMX300TAG has built-in overcurrent protection and short-circuit protection. However, it's recommended to add external protection components such as fuses or PTC thermistors to provide additional protection. Also, ensure that the output capacitor is properly sized to handle inrush current and voltage overshoot.
  • The recommended output capacitor value is 10uF to 47uF, with an X5R or X7R dielectric. The capacitor should be placed as close to the device as possible, and should have a voltage rating of at least 2x the output voltage.
