NCP186BMX330TAG footprint, schematic symbol and 3D model by onsemi

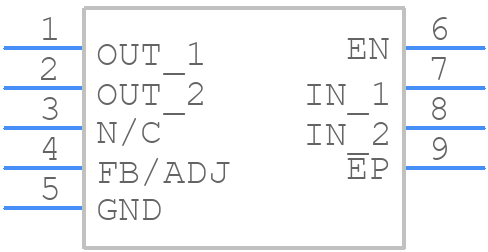

Symbol

click to zoom

PCB Footprints

NCP186BMX330TAG - onsemi PCB footprint - Other - Other - XDFN8 1.6x1.2 0.4P CASE 711AS

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCP186BMX330TAG
Part Number NCP186BMX330TAG
Manufacturer onsemi
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - XDFN8 1.6x1.2 0.4P CASE 711AS
Released Date Sep 18, 2018
Last Modified Date Jan 22, 2025 4:53 PM UTC
Pinout / Pin List Click Here (Member Only)

NCP186BMX330TAG Details

Manufacturer Part Number:
NCP186BMX330TAG
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
XDFN-8
Manufacturer Package Code:
711AS
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
8 Weeks
Manufacturer:
onsemi
YTEOL:
8
Adjustability:
FIXED
Dropout Voltage1-Max:
0.145 V
Dropout Voltage1-Nom:
0.095 V
Input Voltage Absolute-Max:
6 V
Input Voltage-Max:
5.5 V
Input Voltage-Min:
3.8 V
JESD-30 Code:
R-PDSO-N8
Length:
1.6 mm
Line Regulation-Max:
0.0122%
Load Regulation-Max:
0.005%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
1 A
Output Voltage1-Max:
3.333 V
Output Voltage1-Min:
3.234 V
Output Voltage1-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.05,16
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level:
AEC-Q100
Seated Height-Max:
0.45 mm
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Nickel/Gold/Palladium (Ni/Au/Pd)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
1%
Width:
1.2 mm

NCP186BMX330TAG Frequently Asked Questions (FAQs)

A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of any components or traces.
To ensure reliable start-up and shutdown, make sure the input voltage rises and falls monotonically, and the input voltage is within the recommended operating range. Also, ensure that the output capacitor is properly sized and placed close to the device to minimize parasitic inductance.
The recommended input capacitor value is 10uF to 22uF, with an X5R or X7R dielectric type. The capacitor should be placed as close as possible to the device's input pins to minimize parasitic inductance.
The NCP186BMX330TAG has built-in overcurrent protection and fault detection. The device will automatically shut down in case of an overcurrent or fault condition. The fault flag (FLAG) pin can be used to detect fault conditions. It is recommended to use an external resistor divider to detect the fault condition and take appropriate action.
The recommended output capacitor value is 10uF to 22uF, with an X5R or X7R dielectric type. The capacitor should be placed as close as possible to the device's output pins to minimize parasitic inductance.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

NCP186BMX330TAG Overview

Use the download button to access the NCP186BMX330TAG schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NCP18, or try a keyword search, such as Linear Regulator ICs
