NCP3020ADR2G - onsemi

Description: Input voltage from 4.7 V to 28 V; 0.6 V +/-1.5% Reference Voltage; 300 kHz Operation (NCP3020B - 600 kHz); >1A Drive Capability; Current Limit and Short Circuit Protection; Output Overvoltage and Undervoltage Detection; Transconductance Amplifier with External Compensation; Integrated boost diode; Regulated Soft-start; AEC-Q100 and PPAP compliant (NCV3020)

Download NCP3020ADR2G Model

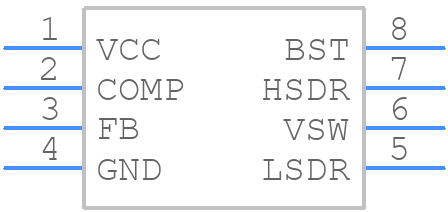

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP3020ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCP3020ADR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCP3020ADR2G Details

  • Manufacturer Part Number:

    NCP3020ADR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    4.7 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    11 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    360 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP3020ADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP3020ADR2G should include a solid ground plane, short and direct traces for the input and output, and a decoupling capacitor (e.g., 10uF) placed close to the device. Additionally, the input and output capacitors should be placed as close as possible to the device pins.
  • To ensure stability, the NCP3020ADR2G requires a minimum output capacitance of 10uF, and the output voltage should be set to a value that is within the device's specified output voltage range. Additionally, the input voltage should be well-regulated and free of noise.
  • The NCP3020ADR2G is rated for operation over a temperature range of -40°C to +125°C. However, the device's performance and reliability may be affected at extreme temperatures, so it's essential to consider the specific application requirements and potential thermal management needs.
  • Yes, the NCP3020ADR2G is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive-grade components. However, it's essential to review the device's specifications and ensure it meets the specific requirements of the application.
  • The power dissipation of the NCP3020ADR2G can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. The device's thermal resistance (θJA) should also be considered to ensure the junction temperature remains within the specified range.
