Description:Average Current up to 55A; Capable of Switching at Frequencies up to 2 MHz; Compatible with 3.3 V or 5 V PWM Input; Supports Intel® Power State 4; Option for Zero Cross Detection with 3-level PWM; Internal Bootstrap Diode; Thermal Warning Output and Thermal Shutdown; Pin-to-pin with NCP302045
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper PCB design guidelines.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
When selecting input and output capacitors, consider the device's operating frequency, output voltage, and current requirements. Choose capacitors with suitable voltage ratings, capacitance values, and ESR (Equivalent Series Resistance) to ensure stable operation and minimize noise.
To minimize EMI and noise, consider using a shielded layout, placing the device away from noise sources, using noise-reducing components (e.g., ferrite beads), and following proper PCB design guidelines for signal routing and grounding.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP302155AMNTWG Overview

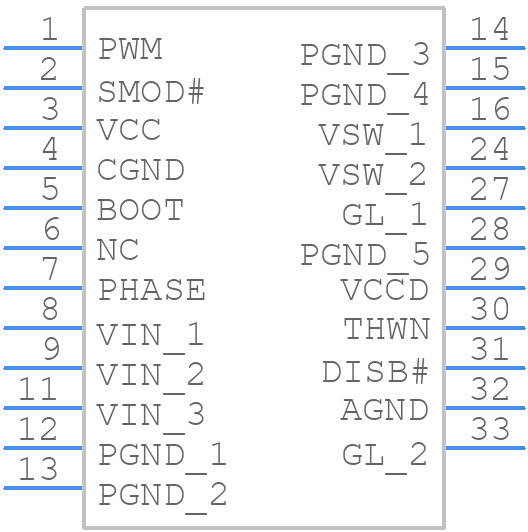

Use the download button to access the NCP302155AMNTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP30,
or try a keyword search, such as MOSFET Drivers
