NCP303151MNTWG - onsemi

Description: Capable of Average Currents up to 50 A; Capable of Switching at Frequencies up to 1 MHz; Compatible with 3.3 V or 5 V PWM Input; Responds Properly to 3−level PWM Inputs; Precise Current Monitoring; Option for Zero Cross Detection with 3−level PWM; Internal Bootstrap Diode; Undervoltage Lockout; Supports Intel® Power State 4; 30 V / 30 V Breakdown Voltage MOSFETs for Higher Long Term Reliability

Download NCP303151MNTWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

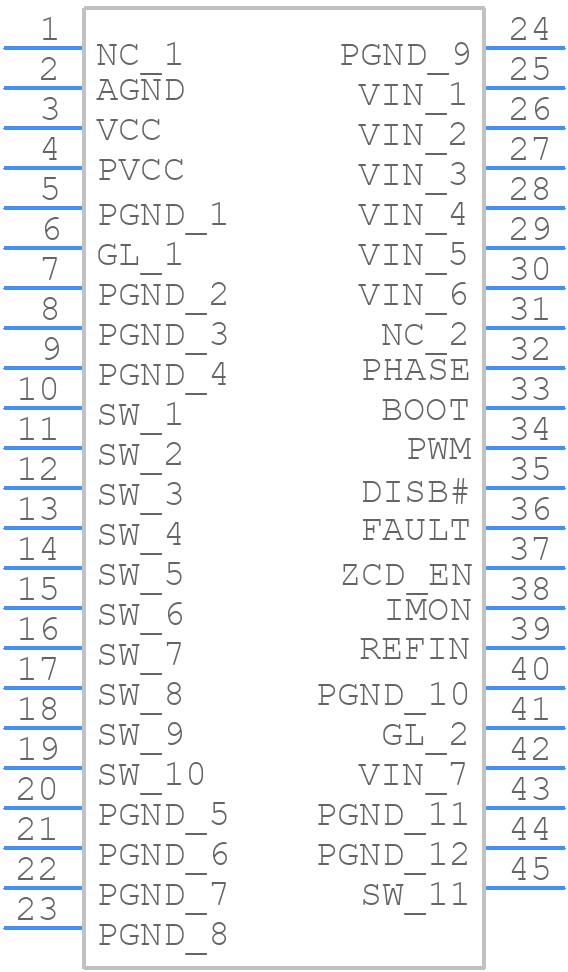

NCP303151MNTWG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP303151MNTWG - onsemi PCB footprint - Other - Other - PQFN39 5X6, 0.45P CASE 483BF ISSUE B
click to zoom
3D Models
NCP303151MNTWG - onsemi - 3D model - Other - PQFN39 5X6, 0.45P CASE 483BF ISSUE B
click to zoom

NCP303151MNTWG Details

  • Manufacturer Part Number:

    NCP303151MNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PQFN-39

  • Package Description:

    LCC-39

  • Manufacturer Package Code:

    483BF

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-08-30

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N39

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    39

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2X.24,18

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.85 mm

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    MOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

NCP303151MNTWG Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to an internal copper plane or a heat sink.
  • The device requires a stable input voltage (VIN) and a bypass capacitor (CBYP) to ensure proper biasing. A 10uF ceramic capacitor is recommended for CBYP. Additionally, the input voltage should be filtered using an LC filter or a ferrite bead to reduce noise.
  • The maximum output current capability of the NCP303151MNTWG is 1.5A. However, the output current should be derated based on the ambient temperature and the PCB's thermal design.
  • The device has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be achieved by using a voltage supervisor or a reset IC to monitor the input voltage and reset the system if it falls outside the recommended operating range.
  • A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended for the input capacitor (CIN). The capacitor should be placed as close to the VIN pin as possible to minimize noise and ripple.
