Description:30 V / 30 V Breakdown Voltage MOSFETs for Higher Long Term Reliability; Capable of Average Currents up to 50 A; Capable of Switching at Frequencies up to 1 MHz; Compatible with 3.3 V or 5 V PWM Input; Responds Properly to 3−level PWM Inputs; Precise Current Monitoring; Option for Zero Cross Detection with 3−level PWM; Internal Bootstrap Diode; Supports Intel® Power State 4; Catastrophic Fault Detection ♦ Thermal Flag (OTP) for Over−Temperature Condition ♦ Over−Current Protection FAULT (OCP) ♦ Under−Voltage
The recommended PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the junction temperature below the maximum rating.
The maximum allowed voltage on the enable pin (EN) is 6V, which is the maximum rating for the logic input voltage. Exceeding this voltage may damage the device.
Yes, the NCP303152MNTWG is qualified for automotive and high-reliability applications. It meets the AEC-Q100 qualification standard and is designed to operate in harsh environments. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
The power dissipation of the device can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The calculated power dissipation should be within the maximum rating specified in the datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP303152MNTWG Overview

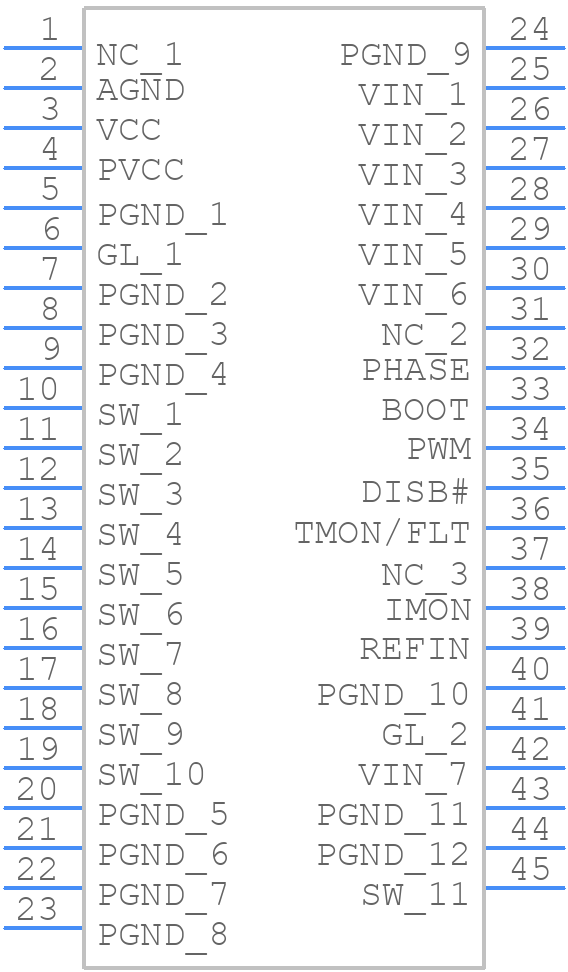

Use the download button to access the NCP303152MNTWG schematic symbol, PCB footprint, and 3D model.
