NCP3064DR2G - onsemi

Description: Operation up to 40 V Input; Frequency operation up to 150 kHz (250 kHz if used as a controller); Internal thermal Shutdown with hysteresis; Cycle-by-Cycle Current Limiting; Low power standby mode (<100µA)

Download NCP3064DR2G Model

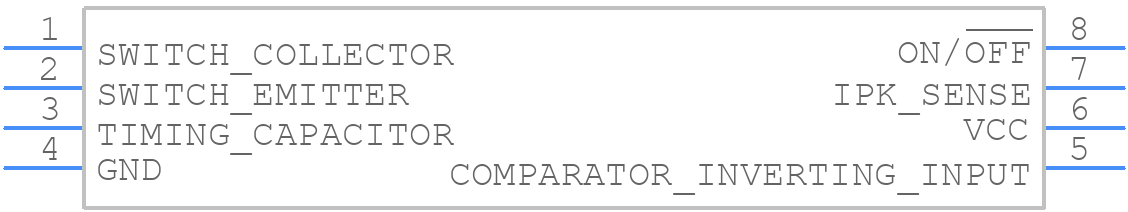

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP3064DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NCP3064DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NCP3064DR2G Details

  • Manufacturer Part Number:

    NCP3064DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8 Narrow Body-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.6

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    HYSTERETIC CURRENT MODE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    7 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    190 kHz

  • Technology:

    PMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm
