NCP3136MNTXG - onsemi

Description: 1.1MHz Switching Frequency; Up to 5A continuous current; Automatic DCM/CCM and FCCM operating modes; 3mm by 3mm QFN package; Output range from 0.6V to 0.84Vin; Over/Undervoltage, Overcurrent, and Overtemperature protection; Internal 1.5ms soft start; Safe start up into prebias output; hiccup mode during short circuit conditions

Download NCP3136MNTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

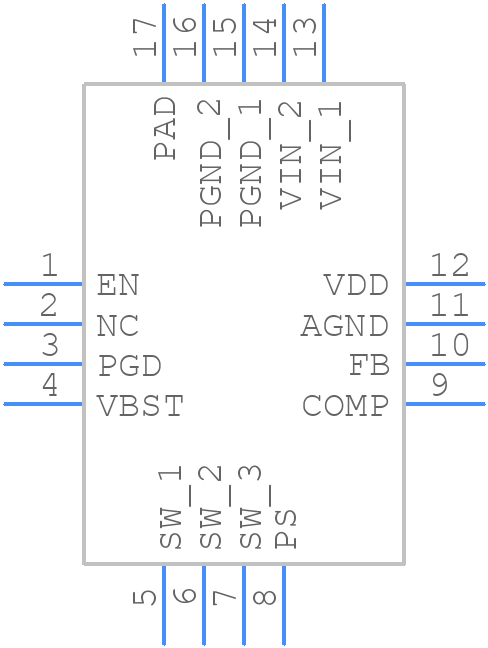

Symbol
NCP3136MNTXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP3136MNTXG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3 0.5 P CASE 485AE ISSUE A
click to zoom
3D Models
NCP3136MNTXG - onsemi - 3D model - Quad Flat No-Lead - QFN16 3x3 0.5 P CASE 485AE ISSUE A
click to zoom

NCP3136MNTXG Details

  • Manufacturer Part Number:

    NCP3136MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-16

  • Package Description:

    QFN-16

  • Manufacturer Package Code:

    485DA

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2017-01-27

  • Manufacturer:

    onsemi

  • YTEOL:

    7.5

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 4.62V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.9 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1210 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP3136MNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the IC is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
  • Ensure that the input voltage rises and falls monotonically, and add a soft-start circuit to limit the inrush current during start-up. Also, add a voltage supervisor to ensure the converter is fully enabled only after the input voltage has reached a minimum threshold.
  • The maximum allowed capacitance is dependent on the specific application and output voltage. As a general guideline, keep the output capacitance below 100uF to avoid stability issues. Consult the datasheet and application notes for more information.
  • Use the datasheet's recommended compensation network values as a starting point, and then adjust the values based on the specific application's requirements and stability analysis. You can also use simulation tools or consult with onsemi's application engineers for guidance.
  • A low-ESR ceramic or film capacitor with a value between 10uF to 22uF is recommended. The capacitor should be rated for the input voltage and have a low equivalent series resistance (ESR) to minimize voltage ripple and noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP3136MNTXG Overview

Use the download button to access the NCP3136MNTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP31, or try a keyword search, such as Switching Regulator or Controllers
