Part Image

NCP3170ADR2G - onsemi

Description: Switching regulator,voltage,3A,PWM,SOIC8 NCP3170ADR2G, PWM Switching Regulator, 3 mA Adjustable, 0.8 V 550 kHz 8-Pin, SOIC

Download NCP3170ADR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

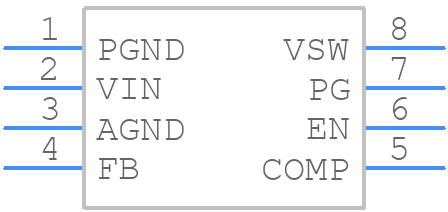

Symbol
NCP3170ADR2G - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP3170ADR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC
click to zoom
3D Models
NCP3170ADR2G - onsemi - 3D model - Small Outline Packages - 8-Pin SOIC
click to zoom

NCP3170ADR2G Details

  • Manufacturer Part Number:

    NCP3170ADR2G

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    550 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

NCP3170ADR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP3170ADR2G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A ceramic capacitor with a value of 10uF to 22uF is recommended. The output capacitor should have a low ESR and be rated for the output voltage. A ceramic capacitor with a value of 10uF to 22uF is recommended. The capacitor values can be adjusted based on the specific application requirements.
  • The maximum ambient temperature range for the NCP3170ADR2G is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • To ensure stability, the NCP3170ADR2G requires a minimum output capacitance of 10uF. Additionally, the PCB layout should be designed to minimize the loop area and reduce the parasitic inductance. A feedback resistor (RFB) of 1kΩ to 10kΩ can be added to improve stability.
  • The maximum output current of the NCP3170ADR2G is 2A. However, the output current can be limited by the input voltage, output voltage, and thermal considerations.
