NCP3230MNTXG - onsemi

Description: Conv DC-DC 4.5V to 18V Synchronous Step Down Single-Out 0.6V 30A 40-Pin QFN EP T/R, QFN40 6x6, 0.5P CASE 485CM

Download NCP3230MNTXG Model

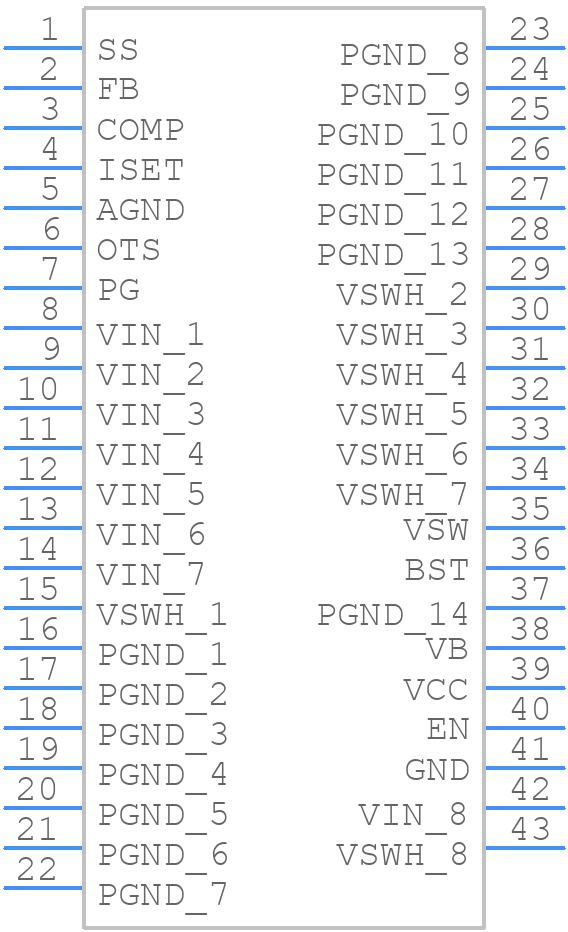

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP3230MNTXG - onsemi PCB footprint - Other - Other - QFN40 6x6, 0.5P CASE 485CM
click to zoom
3D Models
NCP3230MNTXG - onsemi  - 3D model - Other - QFN40 6x6, 0.5P CASE 485CM
click to zoom

NCP3230MNTXG Details

  • Manufacturer Part Number:

    NCP3230MNTXG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-40

  • Manufacturer Package Code:

    485CM

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    77 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE DOWN TO 0.6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

NCP3230MNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
  • Ensure that the input voltage rises and falls monotonically, and that the input voltage is above the UVLO threshold (around 2.5V) during start-up. Also, ensure that the output voltage is properly decoupled to prevent voltage spikes during shutdown.
  • The maximum allowed input voltage ripple is 10% of the nominal input voltage. Exceeding this limit may affect the device's performance and reliability.
  • Yes, the device is rated for operation up to 150°C junction temperature. However, ensure that the device is properly heat-sinked and that the thermal design is adequate for the specific application.
  • Ensure that the device is in shutdown mode during standby, and that the input voltage is reduced to the minimum required level. Also, consider using a low-quiescent-current LDO regulator for the standby power rail.
