NCP3231AMNTXG - onsemi

Description: Buck Converter - High Current, Synchronous, QFN40

Download NCP3231AMNTXG Model

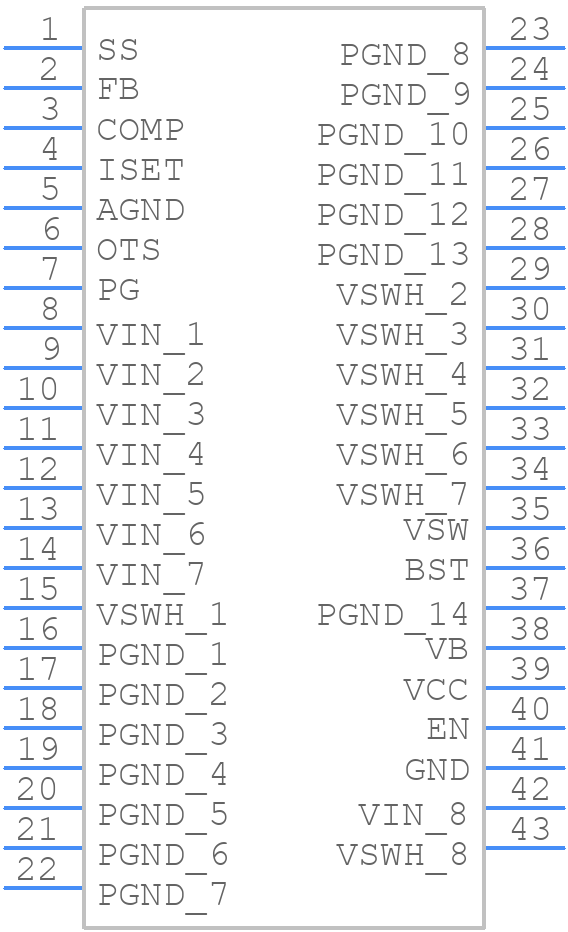

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP3231AMNTXG - onsemi PCB footprint - Other - Other - QFN40 6x6, 0.5P CASE 485CM ISSUE O_ffw
click to zoom
3D Models
NCP3231AMNTXG - onsemi  - 3D model - Other - QFN40 6x6, 0.5P CASE 485CM ISSUE O_ffw
click to zoom

NCP3231AMNTXG Details

  • Manufacturer Part Number:

    NCP3231AMNTXG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-40

  • Manufacturer Package Code:

    485CM

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    25 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

NCP3231AMNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device is recommended. This helps to dissipate heat efficiently and reduce thermal resistance.
  • Ensure that the device is operated within the recommended temperature range (–40°C to 150°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power handling capability at high temperatures.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10-22 μF is recommended. This helps to filter out high-frequency noise and ensure stable operation.
  • Use a shielded inductor, keep the layout compact, and minimize loop areas. Also, consider adding EMI filters or shielding to the PCB to reduce radiated emissions.
  • The maximum allowed voltage on the VIN pin is 28 V. Exceeding this voltage may damage the device.
