NCP3231MNTXG - onsemi

Description: Switching Voltage Regulators High Current Synchronous Buck Converter High Current Synchronous Buck Converter

Download NCP3231MNTXG Model
Schematic

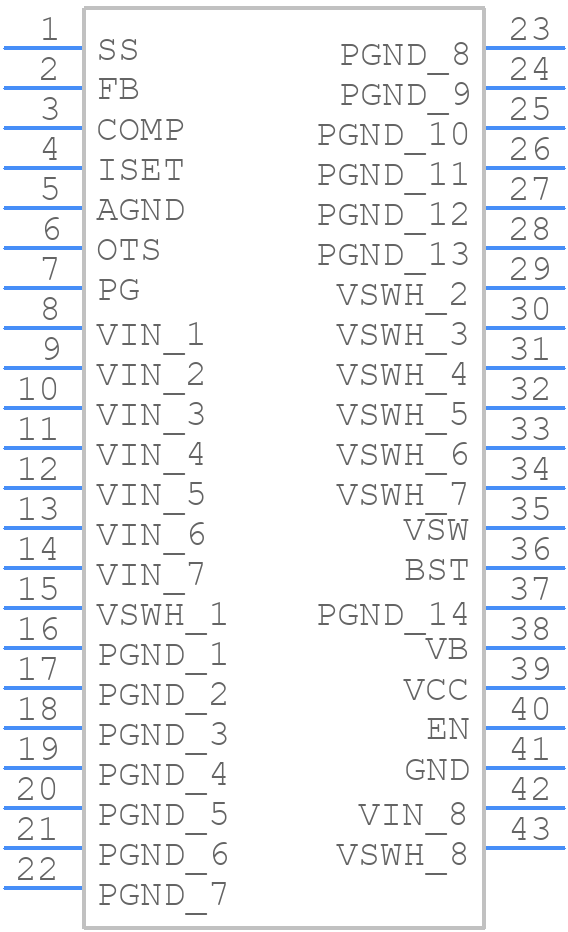

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP3231MNTXG - onsemi PCB footprint - Other - Other - QFN40 6x6, 0.5P
click to zoom
3D Models
NCP3231MNTXG - onsemi  - 3D model - Other - QFN40 6x6, 0.5P
click to zoom

NCP3231MNTXG Details

  • Manufacturer Part Number:

    NCP3231MNTXG

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-40

  • Manufacturer Package Code:

    485CM

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    30 A

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    550 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

NCP3231MNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and use a thermal pad on the PCB.
  • Ensure that the input voltage (VIN) is within the recommended range (2.5V to 5.5V) and that the enable pin (EN) is properly biased to either VCC or GND. Also, make sure the output capacitor (COUT) is properly sized and placed close to the device.
  • A 1uF to 10uF ceramic capacitor (X5R or X7R dielectric) is recommended for the input capacitor (CIN). The capacitor should be placed close to the device and have a low ESR to minimize voltage ripple.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Iout is the output current, Cout is the output capacitance, and fsw is the switching frequency.
  • The maximum ambient temperature for the NCP3231MNTXG is 85°C. However, the device can operate up to 125°C junction temperature, but the ambient temperature should be derated accordingly to ensure reliable operation.
