Description:High Accuracy Over Line and Load (±0.9% at 25 °C); UltraLow Dropout Voltage at Full Load (260 mV typ.); No Minimum Output Current Required for Stability; Low Noise (31 Vrms w/10 nF Cnr and 51 Vrms w/out Cnr); Low Shutdown Current (0.07 µA); Reverse Bias Protected; 2.6 V to 12 V Supply Range; Thermal Shutdown Protection; Current Limitation; Requires Only 1.0 µF Output capacitance for Stability; Stable with Any Type of Capacitor (including MLCC); Available in 1.5V, 1.8V, 2.5 V, 2.8V, 2.85 V, 3.0V, 3.3 V, 5.0
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from onsemi provides additional recommendations.
To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet. Additionally, ensure that the input voltage is within the recommended range, and that the output voltage is properly regulated. A good understanding of the device's operating modes and voltage ranges is essential.
To minimize EMI and noise, use proper PCB layout techniques, such as separating analog and digital grounds, using shielding, and minimizing loop areas. Additionally, ensure that the device is properly decoupled, and that the input and output capacitors are properly selected and placed.
To troubleshoot issues, start by verifying the input voltage and current, and ensuring that the device is properly biased. Check for any signs of overheating, and verify that the output voltage is within the recommended range. Use oscilloscopes and other diagnostic tools to identify any anomalies, and consult the datasheet and application notes for guidance.
Operating the device outside of the recommended temperature range can lead to reduced performance, decreased reliability, and potentially even device failure. Ensure that the device is operated within the recommended temperature range to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP3335ADM330R2G Overview

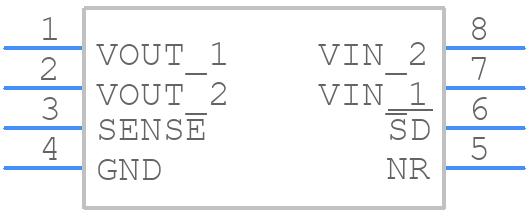

Use the download button to access the NCP3335ADM330R2G schematic symbol, PCB footprint, and 3D model.
