A good PCB layout for the NCP3902FCCTBG involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the device's power supply and to decouple the input and output with 10uF and 1uF capacitors, respectively.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with capacitors and to use a low-impedance power source.
The NCP3902FCCTBG can handle input voltages up to 28V, but it's recommended to operate it within the specified input voltage range of 4.5V to 18V for optimal performance and reliability.
The NCP3902FCCTBG is rated for operation up to 125°C, but it's recommended to derate the device's performance at high temperatures. It's also important to ensure good thermal management and to follow the recommended thermal design guidelines.
To troubleshoot issues with the NCP3902FCCTBG, start by checking the input and output voltages, and ensuring that the device is properly powered and configured. Check for any signs of overheating, and verify that the PCB layout and component values meet the recommended guidelines. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP3902FCCTBG Overview

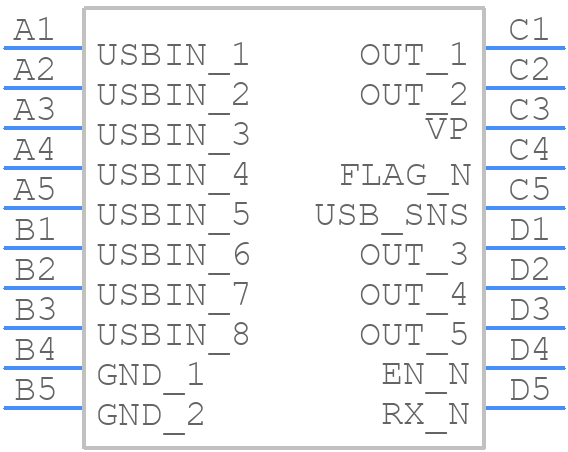

Use the download button to access the NCP3902FCCTBG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP39,
or try a keyword search, such as Peripheral Drivers
