Description:Precise True Secondary Zero Current Detection with Adjustable Threshold; Automatic Parasitic Inductance Compensation; Typically 40 ns Turn off Delay from Current Sense Input to Driver; Zero Current Detection Pin Capability up to 200 V; Optional Ultrafast Trigger Input; Disable Input; Adjustable Minimum ON Time and Minimum OFF Time; 5 A/2.5 A Peak Current Sink/Source Drive Capability; Operating Voltage Range up to 30V
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad clear of any components or traces.
To ensure reliable operation at high temperatures, ensure that the device is operated within its specified temperature range (up to 150°C for the NCP4304ADR2G). Use a suitable thermal interface material (TIM) between the device and the heat sink, and ensure good airflow around the device. Also, consider using a thermocouple or temperature sensor to monitor the device temperature.
To mitigate EMI and RFI, use a shielded enclosure, and ensure that the PCB layout is designed to minimize radiation. Use a common-mode choke or ferrite bead on the input lines, and consider adding EMI filters or shielding to the device. Also, ensure that the device is placed away from other noise-sensitive components.
When selecting input capacitors, consider the voltage rating, capacitance value, and ESR (equivalent series resistance) of the capacitor. Choose a capacitor with a voltage rating that exceeds the maximum input voltage, and a capacitance value that meets the device's recommended input capacitance. A low ESR is also important to minimize power losses.
When selecting output capacitors, consider the voltage rating, capacitance value, and ESR of the capacitor. Choose a capacitor with a voltage rating that exceeds the maximum output voltage, and a capacitance value that meets the device's recommended output capacitance. A low ESR is also important to minimize power losses and ensure stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP4304ADR2G Overview

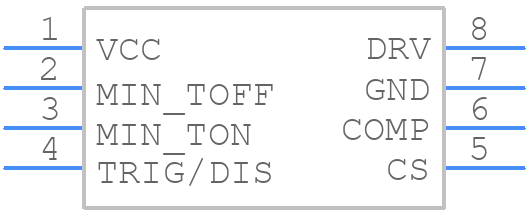

Use the download button to access the NCP4304ADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43,
or try a keyword search, such as Switching Regulator or Controllers
