NCP4306AAAZZZAMNTWG - onsemi

Description: Precise True Secondary Zero Current Detection; Typically 15 ns Turn off Delay from Current Sense Input to Driver; Zero Current Detection Pin Capability up to 200 V; Optional Ultrafast (10.5ns) Trigger Input; Disable Input; Adjustable Minimum ON Time and Minimum OFF Time; dV/dt detection; 7 A Sink, 2 A Source Drive capability; Automatic Light Load Disable Mode; 3.5V UVLO and Operation Voltage range up to 35V

Download NCP4306AAAZZZAMNTWG Model

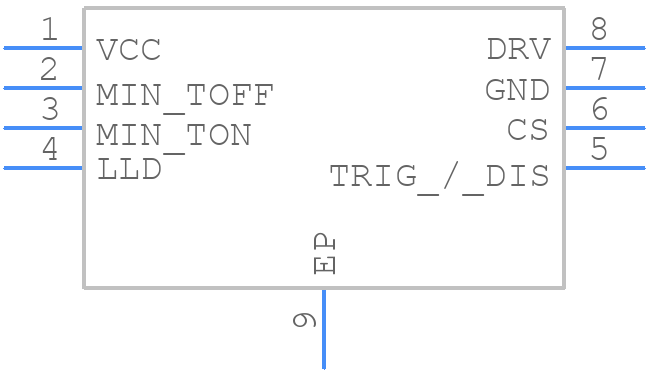

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP4306AAAZZZAMNTWG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8, 4x4 CASE 488AF−01 ISSUE C
click to zoom
3D Models
NCP4306AAAZZZAMNTWG - onsemi  - 3D model - Small Outline No-lead - DFN8, 4x4 CASE 488AF−01 ISSUE C
click to zoom

NCP4306AAAZZZAMNTWG Details

  • Manufacturer Part Number:

    NCP4306AAAZZZAMNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-8

  • Manufacturer Package Code:

    488AF

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2018-10-17

  • Manufacturer:

    onsemi

  • YTEOL:

    7.2

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    RESONANT CONTROL

  • Input Voltage-Max:

    35 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    2.2 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

NCP4306AAAZZZAMNTWG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. Refer to onsemi's application note AND8325/D for more details.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable thermal interface material, and consider derating the device's power dissipation. Also, ensure good airflow and avoid thermal hotspots.
  • The NCP4306 has a higher current rating (30A) and a lower RDS(on) (4.5mΩ) compared to other similar devices. It also has a more advanced protection feature set, including overcurrent protection, overvoltage protection, and thermal shutdown.
  • To troubleshoot issues with the overcurrent protection feature, check the device's datasheet for the correct overcurrent protection threshold, ensure proper PCB layout and thermal design, and verify that the device is not overheating. Also, check for any external circuitry that may be interfering with the device's operation.
  • The recommended soldering conditions for the NCP4306 are: peak temperature 260°C, time above 217°C 30s, and time above 240°C 10s. Refer to onsemi's packaging and assembly guidelines for more information.
