NCP4306AADZZZAMNTWG - onsemi

Description: Precise True Secondary Zero Current Detection; Typically 15 ns Turn off Delay from Current Sense Input to Driver; Zero Current Detection Pin Capability up to 200 V; Optional Ultrafast (10.5ns) Trigger Input; Disable Input; Adjustable Minimum ON Time and Minimum OFF Time; dV/dt detection; 7 A Sink, 2 A Source Drive capability; Automatic Light Load Disable Mode; 3.5V UVLO and Operation Voltage range up to 35V

Download NCP4306AADZZZAMNTWG Model

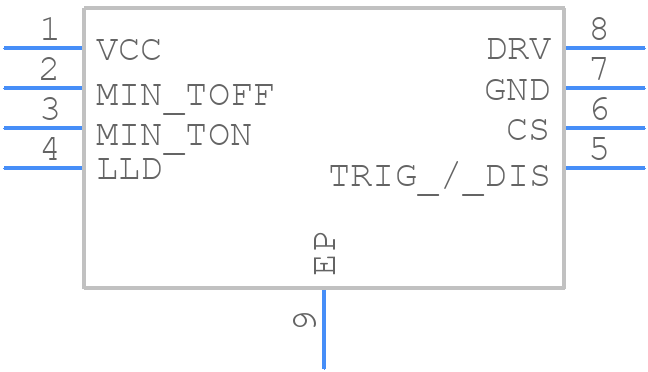

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP4306AADZZZAMNTWG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN−8 4x4 (Pb−Free)
click to zoom
3D Models
NCP4306AADZZZAMNTWG - onsemi  - 3D model - Small Outline No-lead - DFN−8 4x4 (Pb−Free)
click to zoom

NCP4306AADZZZAMNTWG Details

  • Manufacturer Part Number:

    NCP4306AADZZZAMNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-8

  • Manufacturer Package Code:

    488AF

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Date Of Intro:

    2018-10-17

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Technique:

    RESONANT CONTROL

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    2.2 mA

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

NCP4306AADZZZAMNTWG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NCP4306AADZZZAMNTWG should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good copper pour coverage around the device. Avoid routing high-current traces under the device, and keep the thermal pad connected to a solid ground plane.
  • To ensure reliable operation across the full temperature range, follow the recommended operating conditions, and consider the device's thermal characteristics. Implement proper thermal management, and ensure the device is not exposed to excessive temperatures during storage or operation.
  • For EMI and EMC compliance, ensure proper PCB layout, decoupling, and filtering. Use a common-mode choke and a differential-mode filter to reduce emissions. Implement a shielded enclosure, and consider using a metal can or a shielded inductor to minimize radiation.
  • To optimize the device for low standby power consumption, ensure the enable pin is properly controlled, and the device is in a low-power state when not in use. Implement a power-good signal to ensure the device is only enabled when the input voltage is within the recommended range.
  • For testing and measurement, use a 4-point Kelvin connection to measure voltage and current accurately. Ensure the test setup is properly isolated, and use a high-impedance probe to minimize loading effects. Consider using a thermal camera to monitor the device's temperature during testing.
