Description:Precise True Secondary Zero Current Detection; Typically 15 ns Turn off Delay from Current Sense Input to Driver; Zero Current Detection Pin Capability up to 200 V; Optional Ultrafast (10.5ns) Trigger Input; Disable Input; Adjustable Minimum ON Time and Minimum OFF Time; dV/dt detection; 7 A Sink, 2 A Source Drive capability; Automatic Light Load Disable Mode; 3.5V UVLO and Operation Voltage range up to 35V
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, ensure good thermal design, and consider derating the device's power handling capabilities. Additionally, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
Exceeding the maximum junction temperature can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure the device operates within the recommended temperature range to maintain reliability and performance.
To handle ESD protection, follow proper handling and storage procedures, use ESD-protective packaging, and consider adding external ESD protection devices, such as TVS diodes, to the PCB design.
Operating the device at a lower voltage than the recommended minimum may result in reduced performance, increased power consumption, and potentially even device malfunction. It's essential to operate the device within the recommended voltage range to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP4306AAHZZZADR2G Overview

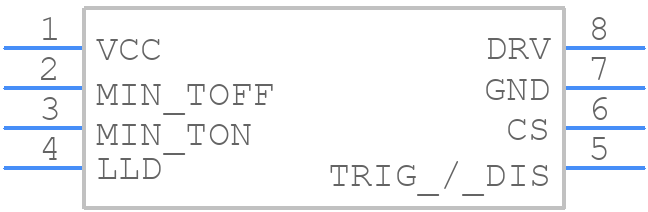

Use the download button to access the NCP4306AAHZZZADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43,
or try a keyword search, such as Switching Regulator or Controllers
