NCP4306ABHZZZAMNTWG - onsemi

Description: Precise True Secondary Zero Current Detection; Typically 15 ns Turn off Delay from Current Sense Input to Driver; Zero Current Detection Pin Capability up to 200 V; Optional Ultrafast (10.5ns) Trigger Input; Disable Input; Adjustable Minimum ON Time and Minimum OFF Time; dV/dt detection; 7 A Sink, 2 A Source Drive capability; Automatic Light Load Disable Mode; 3.5V UVLO and Operation Voltage range up to 35V

Download NCP4306ABHZZZAMNTWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

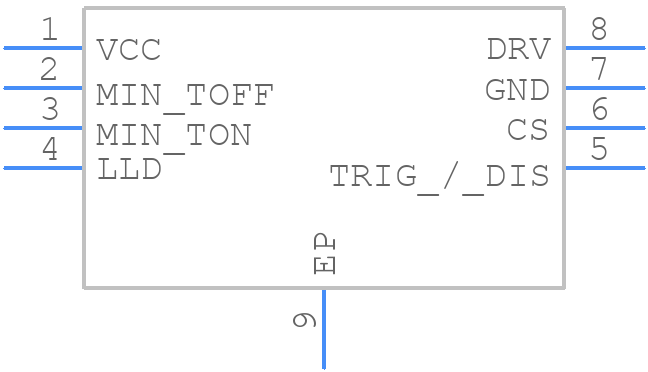

NCP4306ABHZZZAMNTWG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP4306ABHZZZAMNTWG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8, 4x4 CASE 488AF−01
click to zoom
3D Models
NCP4306ABHZZZAMNTWG - onsemi - 3D model - Small Outline No-lead - DFN8, 4x4 CASE 488AF−01
click to zoom

NCP4306ABHZZZAMNTWG Details

  • Manufacturer Part Number:

    NCP4306ABHZZZAMNTWG

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP4306ABHZZZAMNTWG Overview

Use the download button to access the NCP4306ABHZZZAMNTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43, or try a keyword search, such as Switching Regulator or Controllers
