Description:Self−Contained Control of Synchronous Rectifier in CCM, DCM and QR for Flyback or LLC Applications; Precise True Secondary Zero Current Detection; Rugged Current Sense Pin (up to 150 V); Adjustable Minimum ON−Time; Adjustable Minimum OFF-Time with Ringing Detection; Adjustable Maximum ON−Time for CCM Controlling of Primary QR Controller; Operating Voltage Range up to VCC = 35 V; 8 A / 4 A Peak Current Sink / Source Drive Capability; GaN Transistor Driving Capability (options A and C); Low Startup Current Co
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
To ensure reliable operation at high temperatures, ensure that the device is operated within its specified temperature range, use a suitable thermal interface material, and provide adequate cooling through a heat sink or thermal pad.
Key considerations for EMI filtering and shielding include using a common-mode choke, adding capacitors to filter out high-frequency noise, and shielding the device and surrounding components to prevent electromagnetic interference.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and feedback resistors, and ensure that the device is properly configured and that the output capacitor is suitable for the application.
Operating the device at a lower input voltage may affect its efficiency, output voltage regulation, and maximum output current, so ensure that the device is operated within its specified input voltage range for optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP43080ADR2G Overview

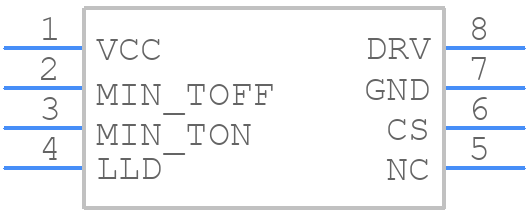

Use the download button to access the NCP43080ADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43,
or try a keyword search, such as Switching Regulator or Controllers
