A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal design, and consider derating the device's power dissipation. Additionally, ensure that the device is properly soldered and that the PCB is designed to withstand the expected temperatures.
Using a lower input voltage than the recommended 12V may result in reduced output power, efficiency, and reliability. Using a higher input voltage may cause excessive power dissipation, reduced lifespan, and potentially damage the device. It's essential to follow the recommended input voltage range to ensure optimal performance and reliability.
To troubleshoot issues with the OCP feature, check the input voltage, output current, and sense resistor values. Ensure that the sense resistor is properly connected and that the OCP threshold is set correctly. Also, verify that the device is not overheating, and that the PCB layout is not causing any issues with the OCP circuitry.
To minimize EMI and EMC issues, follow proper PCB layout and design guidelines, use a suitable input filter, and ensure that the device is properly decoupled. Additionally, consider using shielding, grounding, and filtering techniques to reduce electromagnetic radiation and susceptibility.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP4308ADR2G Overview

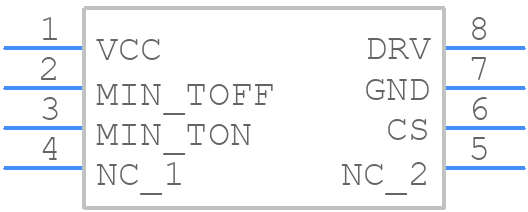

Use the download button to access the NCP4308ADR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP43,
or try a keyword search, such as Switching Regulator or Controllers
