NCP45520IMNTWG-H - onsemi

Description: Advanced Controller with Charge Pump; Integrated N-Channel MOSFET; Soft-Start via Slew Rate Control (NCP45521-Adjustable, NCP45520-Fixed); Ultra-Low On-Resistance; Input Voltage Range 0.5 V to 13.5 V (18V Tolerant); Low Standby Current; Quick Output Discharge Function (Adjustable); No External Components Required; Enable Pins with CMOS Input Levels; Power Good Signaling (NCP45520); Fault Protection: Over Temperature; Fault Protection: Under Voltage Lockout; Fault Protection: Short-Circuit Protection; Pb-Fre

Download NCP45520IMNTWG-H Model

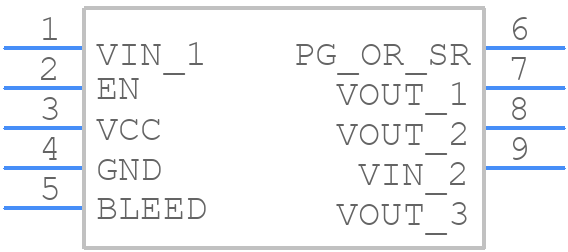

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP45520IMNTWG-H - onsemi PCB footprint - Other - Other - DFN8 2x2, 0.5P CASE 506CC ISSUE A
click to zoom
3D Models
NCP45520IMNTWG-H - onsemi  - 3D model - Other - DFN8 2x2, 0.5P CASE 506CC ISSUE A
click to zoom

NCP45520IMNTWG-H Details

  • Manufacturer Part Number:

    NCP45520IMNTWG-H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN8 2x2, 0.5P

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    506CC

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Built-in Protections:

    TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    13.5 V

  • Supply Voltage1-Min:

    0.5 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NCP45520IMNTWG-H Frequently Asked Questions (FAQs)
