NCP45524IMNTWG-H - onsemi

Description: Power Switch/Driver 1:1 N-Channel 6A 8-DFN (2x2)

Download NCP45524IMNTWG-H Model

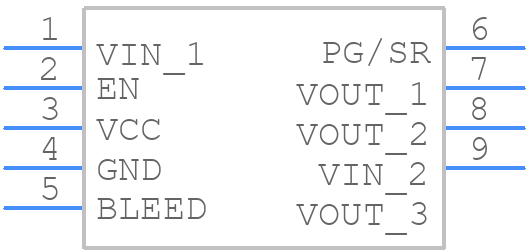

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP45524IMNTWG-H - onsemi PCB footprint - Other - Other - DFN8 2x2, 0.5P CASE 506CC ISSUE A
click to zoom
3D Models
NCP45524IMNTWG-H - onsemi  - 3D model - Other - DFN8 2x2, 0.5P CASE 506CC ISSUE A
click to zoom

NCP45524IMNTWG-H Details

  • Manufacturer Part Number:

    NCP45524IMNTWG-H

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN8 2x2, 0.5P

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    506CC

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On-state Resistance Match-Nom:

    0.000021 Ω

  • On-state Resistance-Max (Ron):

    0.0317 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.68 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NCP45524IMNTWG-H Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the thermal pad connected to the ground plane.
  • To ensure proper biasing, connect the VIN pin to a stable voltage source, and the EN pin to a logic-level signal. The device requires a minimum input voltage of 2.5V and a maximum input voltage of 5.5V. Ensure the input voltage is within the recommended range, and the enable pin is properly driven to avoid unwanted shutdowns.
  • A 1uF to 10uF ceramic capacitor (X5R or X7R dielectric) is recommended for the input capacitor. The capacitor should be placed as close to the VIN pin as possible, and should have a low ESR (Equivalent Series Resistance) to minimize voltage ripple and ensure stable operation.
  • The device has a built-in thermal shutdown feature that activates when the junction temperature exceeds 150°C. When this occurs, the device will shut down and restart when the temperature drops below 130°C. To handle thermal shutdown, ensure proper thermal design, use a heat sink if necessary, and monitor the device's temperature to prevent overheating.
  • A 1uF to 10uF ceramic capacitor (X5R or X7R dielectric) is recommended for the output capacitor. The capacitor should be placed as close to the VOUT pin as possible, and should have a low ESR to minimize voltage ripple and ensure stable operation.
