NCP45525IMNTWG-L - onsemi

Description: Power Switch ICs - Power Distribution NCP45525IMNTWG-L

Download NCP45525IMNTWG-L Model
Schematic

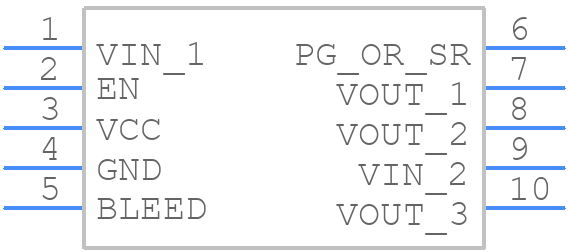

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP45525IMNTWG-L - onsemi PCB footprint - Other - Other - DFN8 2x2, 0.5P CASE 506CC ISSUE A_1
click to zoom
3D Models
NCP45525IMNTWG-L - onsemi  - 3D model - Other - DFN8 2x2, 0.5P CASE 506CC ISSUE A_1
click to zoom

NCP45525IMNTWG-L Details

  • Manufacturer Part Number:

    NCP45525IMNTWG-L

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN8 2x2, 0.5P

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    506CC

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On-state Resistance Match-Nom:

    0.000021 Ω

  • On-state Resistance-Max (Ron):

    0.0317 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.68 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

NCP45525IMNTWG-L Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve thermal performance. A minimum of 2 oz copper thickness and a thermal relief pattern are recommended to ensure good heat dissipation.
  • To ensure stable output voltage regulation, it is recommended to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Additionally, the input capacitor should be placed close to the VIN pin to minimize noise and ripple.
  • The maximum input voltage that can be applied to the device is 18V. Exceeding this voltage may cause damage to the device.
  • The device has a built-in overcurrent protection (OCP) feature that limits the output current to 2.5A. However, it is recommended to add an external fuse or PTC thermistor to protect the device from overcurrent conditions.
  • A ceramic or electrolytic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the VIN pin to minimize noise and ripple.
