NCP4629HDT060T5G footprint, schematic symbol and 3D model by onsemi

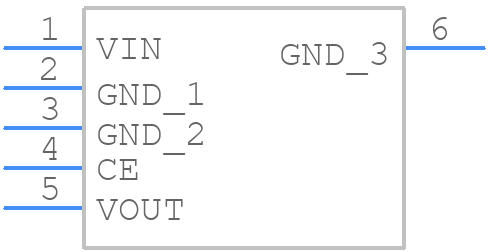

Symbol

click to zoom

PCB Footprints

NCP4629HDT060T5G - onsemi PCB footprint - Other - Other - NCP4629HDT060T5G-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NCP4629HDT060T5G
Part Number NCP4629HDT060T5G
Manufacturer onsemi
Pin Count 6
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - NCP4629HDT060T5G-2
Released Date Oct 27, 2019
Last Modified Date Sep 19, 2024 2:45 PM UTC
Pinout / Pin List Click Here (Member Only)

NCP4629HDT060T5G Details

Manufacturer Part Number:
NCP4629HDT060T5G
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Part Package Code:
DPAK-5 (TO-252 5-Lead)
Package Description:
DPAK-5
Pin Count:
5
Manufacturer Package Code:
369AE
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
4 Weeks
Manufacturer:
onsemi
YTEOL:
0
Adjustability:
FIXED
Dropout Voltage1-Max:
0.18 V
Dropout Voltage1-Nom:
0.115 V
Input Voltage Absolute-Max:
36 V
Input Voltage-Max:
24 V
Input Voltage-Min:
4 V
JESD-30 Code:
R-PSSO-G5
JESD-609 Code:
e3
Length:
6.6 mm
Line Regulation-Max:
0.102%
Load Regulation-Max:
0.06%
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
5
Operating Temperature TJ-Max:
150 °C
Operating Temperature TJ-Min:
-40 °C
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current1-Max:
0.5 A
Output Voltage1-Max:
6.12 V
Output Voltage1-Min:
5.88 V
Output Voltage1-Nom:
6 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SMSIP5H,.37,50TB
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
2.63 mm
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
6.1 mm

NCP4629HDT060T5G Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal thermal performance involves placing the device on a thermal pad connected to a large copper area on the PCB, and ensuring good airflow around the device. A 4-layer PCB with a solid ground plane and a thermal relief pattern around the thermal pad is also recommended.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its specified temperature range. Additionally, consider using thermal interface materials and heat sinks to reduce the device's junction temperature.
Exceeding the maximum junction temperature can lead to reduced device reliability, increased thermal resistance, and potentially even device failure. It is essential to ensure that the device is operated within its specified temperature range to prevent these issues.
The power dissipation of the device can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Additionally, consider the device's efficiency and thermal resistance when calculating power dissipation.
The recommended input and output capacitors for the NCP4629HDT060T5G are ceramic capacitors with a voltage rating of at least 10V and a capacitance value of 10uF to 22uF. The capacitor's ESR (Equivalent Series Resistance) should be as low as possible to minimize voltage ripple and ensure stable operation.
