NCP5104DR2G - onsemi

Description: High Voltage range: up to 600 V; dV/dt Immunity 50 V/nsec; Gate drive supply range from 10 V to 20 V; High and Low drive outputs; Output source / sink current capability: 250 mA / 500 mA; 3.3 V and 5 V input logic compatible; Up to Vcc swing on input pins; Matched propagation delays between both channels; 1 input with internal fixed dead time (520 ns); Under Vcc LockOut (UVLO) for both channels; Pin to pin compatible with Industry standard

Download NCP5104DR2G Model

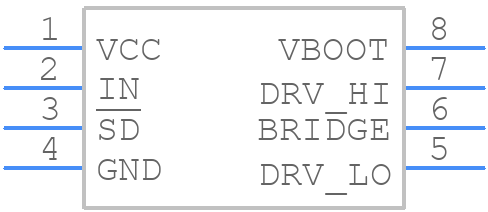

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP5104DR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
NCP5104DR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

NCP5104DR2G Details

  • Manufacturer Part Number:

    NCP5104DR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Built-in Protections:

    UNDER VOLTAGE

  • Interface IC Type:

    HALF BRIDGE BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.17 µs

  • Turn-on Time:

    0.8 µs

  • Width:

    3.9 mm

NCP5104DR2G Frequently Asked Questions (FAQs)

  • The NCP5104DR2G can handle input voltages up to 18V, but it's recommended to operate within the 7V to 15V range for optimal performance.
  • To ensure stability, make sure to follow the recommended PCB layout guidelines, use a sufficient output capacitor (at least 10uF), and add a 1uF capacitor between the VIN and GND pins.
  • The minimum input capacitance required is 1uF, but it's recommended to use a 4.7uF or 10uF capacitor to ensure stable operation.
  • The NCP5104DR2G is rated for operation up to 125°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliability.
  • The output voltage can be calculated using the formula: VOUT = 1.23V x (1 + R1/R2), where R1 and R2 are the resistors in the feedback network.
