NCP5106BDR2G - onsemi

Description: High Voltage Range: Up to 600 V; dV/dt Immunity ± 50 V/nsec; Gate Drive Supply Range from 10 V to 20 V; High and Low Drive Outputs; Output Source / Sink Current Capability 250 mA / 500 mA; 3.3 V and 5 V Input Logic Compatible; Up to Vcc Swing on Input Pins; Matched Propagation Delays Between Both Channels; Outputs in Phase with the Inputs; Independent Logic Inputs to Accommodate All Topologies (Version A); Cross Conduction Protection with 100 ns Internal Fixed Dead Time (Version B ); Under Vcc LockOut (UVLO

Download NCP5106BDR2G Model

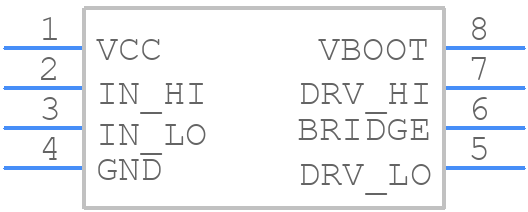

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP5106BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC
click to zoom
3D Models
NCP5106BDR2G - onsemi  - 3D model - Small Outline Packages - 8-Pin SOIC
click to zoom

NCP5106BDR2G Details

  • Manufacturer Part Number:

    NCP5106BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.38

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    10 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.17 µs

  • Turn-on Time:

    0.17 µs

  • Width:

    3.9 mm

NCP5106BDR2G Frequently Asked Questions (FAQs)

  • The maximum input voltage that the NCP5106BDR2G can handle is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value, as recommended in the datasheet.
  • The minimum input voltage required for the NCP5106BDR2G to operate is 2.5V, but it's recommended to keep it above 3V for optimal performance.
  • The NCP5106BDR2G is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent overheating.
  • The output voltage of the NCP5106BDR2G can be calculated using the formula: Vout = (R1 / R2) * (Vin - Vref), where R1 and R2 are the resistors in the feedback network, Vin is the input voltage, and Vref is the reference voltage (1.25V).
