A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable start-up and shutdown, make sure to follow the recommended power-up and power-down sequences, and provide a stable input voltage. Also, ensure that the input voltage rises and falls monotonically, and avoid sudden changes in input voltage.
To prevent damage from ESD, handle the device in an ESD-protected environment, use ESD-protected tools and equipment, and ensure that all personnel handling the device are grounded. Also, avoid touching the device's pins or exposed internal components.
To troubleshoot OCP issues, check the input voltage and current, and ensure that the device is not overloaded. Also, verify that the OCP threshold is set correctly, and check for any faults in the OCP circuitry. Use an oscilloscope to monitor the device's behavior and identify the root cause of the issue.
When using the device in a high-temperature environment, ensure that the device is derated according to the recommended temperature derating curve. Also, provide adequate heat sinking and thermal management to prevent overheating. Consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP5106BMNTWG Overview

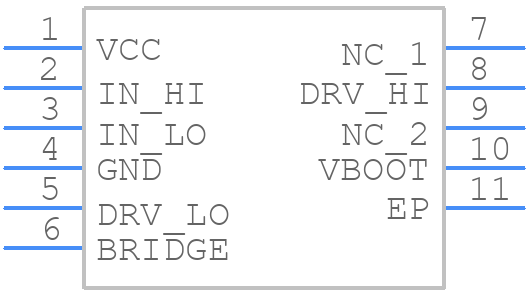

Use the download button to access the NCP5106BMNTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP51,
or try a keyword search, such as MOSFET Drivers
