NCP5109AMNTWG - onsemi

Description: Obsolete - MOSFET / IGBT Drivers, Dual Input, High Voltage, High and Low Side, 200 V

Download NCP5109AMNTWG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

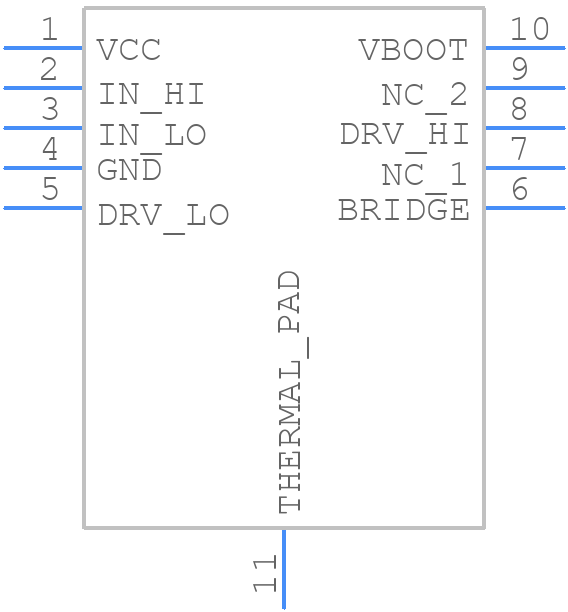

NCP5109AMNTWG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP5109AMNTWG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10 3x3, 0.5P CASE 506DH ISSUE O
click to zoom
3D Models
NCP5109AMNTWG - onsemi - 3D model - Small Outline No-lead - DFN10 3x3, 0.5P CASE 506DH ISSUE O
click to zoom

NCP5109AMNTWG Details

  • Manufacturer Part Number:

    NCP5109AMNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN-10

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    506DH

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    0.17 µs

  • Turn-on Time:

    0.17 µs

  • Width:

    3 mm

NCP5109AMNTWG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the copper traces wide and short can help reduce thermal resistance.
  • To ensure reliable start-up of the device in a high-noise environment, it is recommended to add a capacitor (e.g. 10nF) between the VIN pin and GND, and another capacitor (e.g. 100nF) between the VOUT pin and GND. This helps to filter out noise and ensure stable operation.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage can damage the device. It is recommended to use a voltage divider or a clamp circuit to limit the voltage on the EN pin to within the recommended range.
  • The output voltage ripple of the device can be calculated using the following formula: ΔVOUT = (IOUT * ESL) / (COUT * fSW), where IOUT is the output current, ESL is the equivalent series inductance of the output capacitor, COUT is the output capacitance, and fSW is the switching frequency.
  • The recommended input capacitor type is a ceramic capacitor with a value of 10uF to 22uF. A higher value capacitor can help to reduce input voltage ripple and improve overall system performance.
