NCP5111PG - onsemi

Description: Obsolete - 1.8A Source / Sink VTT DDR Termination Regulator

Download NCP5111PG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

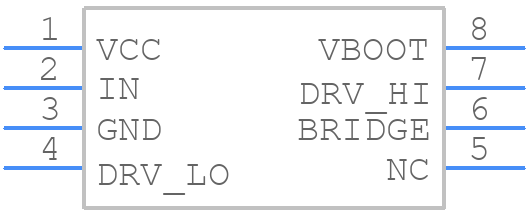

NCP5111PG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP5111PG - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - pdip-08
click to zoom
3D Models
NCP5111PG - onsemi - 3D model - Dual-In-Line Packages - pdip-08
click to zoom

NCP5111PG Details

  • Manufacturer Part Number:

    NCP5111PG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    8 LEAD PDIP

  • Package Description:

    PDIP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    626-05

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e3

  • Length:

    9.59 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    20 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    15 V

  • Supply Voltage1-Max:

    20 V

  • Supply Voltage1-Min:

    10 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Turn-off Time:

    0.17 µs

  • Turn-on Time:

    1.17 µs

  • Width:

    7.62 mm

NCP5111PG Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the NCP5111PG near a thermal pad or a heat sink, and ensuring that there are no thermal barriers or obstacles nearby. The datasheet provides a recommended PCB layout, but it's also recommended to consult with a thermal expert or use thermal simulation tools to optimize the design.
  • To ensure the NCP5111PG is properly biased, make sure to follow the recommended biasing scheme in the datasheet. This typically involves connecting the EN pin to a voltage source, and ensuring that the input voltage is within the recommended range. Additionally, it's recommended to use a low-ESR capacitor on the output to minimize voltage ripple and ensure stable operation.
  • The maximum output current capability of the NCP5111PG is dependent on the input voltage, output voltage, and ambient temperature. While the datasheet provides some guidance on the maximum output current, it's recommended to consult with an onsemi application engineer or use the onsemi power calculator tool to determine the maximum output current capability for a specific application.
  • To protect the NCP5111PG from overvoltage and undervoltage conditions, it's recommended to use a voltage supervisor or a voltage monitor IC to detect and respond to abnormal voltage conditions. Additionally, consider using a TVS diode or a zener diode to clamp the input voltage and prevent damage to the device.
  • The recommended input capacitor type and value for the NCP5111PG depend on the specific application and operating conditions. In general, a low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended. However, it's recommended to consult with an onsemi application engineer or use the onsemi power calculator tool to determine the optimal input capacitor value and type for a specific application.
