NCP51145PDR2G - onsemi

Description: Obsolete - 1.5 Amps DDR Termination Regulators

Download NCP51145PDR2G Model

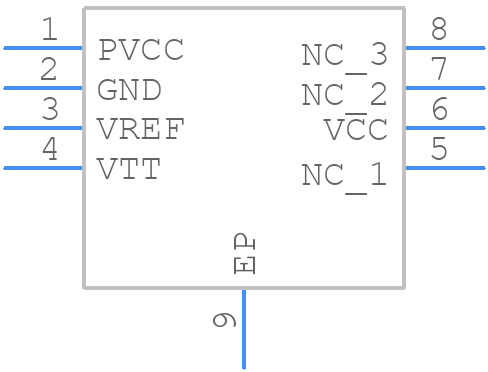

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP51145PDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8−NB EP CASE 751BU ISSUE E
click to zoom
3D Models
NCP51145PDR2G - onsemi  - 3D model - Small Outline Packages - SOIC8−NB EP CASE 751BU ISSUE E
click to zoom

NCP51145PDR2G Details

  • Manufacturer Part Number:

    NCP51145PDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC-8 NB EP

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751BU

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Load Regulation-Max:

    0.004%

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NCP51145PDR2G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NCP51145PDR2G is -40°C to 150°C.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1Ω or less, and to place the capacitor as close to the output pin as possible.
  • The recommended input capacitor value is 1uF to 10uF, with a voltage rating of 10V or higher, and an ESR of 1Ω or less.
  • The output voltage can be calculated using the formula: Vout = (R1/R2) * (Vref - Vfb), where R1 and R2 are the resistors in the feedback network, Vref is the internal reference voltage, and Vfb is the feedback voltage.
  • The maximum current rating for the NCP51145PDR2G is 1.5A.
