NCP51200MNTXG - onsemi

Description: Input Voltage Rails: Supports 2.5 and 3.3 V Rails; PVCC Voltage Range: 1.1 to 3.5 V; Integrated Power MOSFETs; Fast Load-Transient Response; PGOOD-Logic output pin to Monitor VTT Regulation; EN-Logic input pin for Shutdown mode; VRI-Reference Input Allows for Flexible Input Tracking Either Directly or Through Resistor Divider; Remote Sensing (VTTS); Built-in Soft Start, Under Voltage Lockout and Over Current Limit

Download NCP51200MNTXG Model

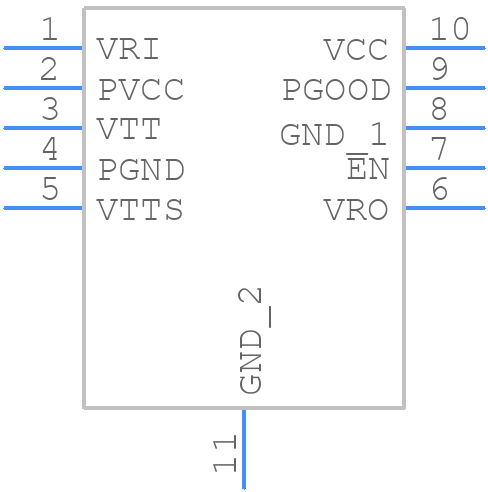

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP51200MNTXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 485C ISSUE B
click to zoom
3D Models
NCP51200MNTXG - onsemi  - 3D model - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 485C ISSUE B
click to zoom

NCP51200MNTXG Details

  • Manufacturer Part Number:

    NCP51200MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN10, 3x3, 0.5P

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    485C

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Differential Output:

    NO

  • Interface IC Type:

    BUS TERMINATOR SUPPORT CIRCUIT

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Signal Lines:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP51200MNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the VIN pin is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • Yes, but ensure the device is properly cooled and the current rating is not exceeded. The device can handle high currents, but thermal management is crucial to prevent overheating.
  • Check the input voltage, output voltage, and enable pin. Ensure the device is properly configured and the input voltage is within the recommended range. Also, verify the PCB layout and thermal design.
