Description:Input Voltage Rails: Supports 2.5 V, 3.3 V and 5 V Rails; PVCC Voltage Range: 1.1 to 3.5 V; Integrated Power MOSFETs; Fast Load−Transient Response; PGOOD − Logic output pin to Monitor VTT Regulation; VRI − Reference Input Allows for Flexible Input Tracking Either Directly or Through Resistor Divider; EN − Logic input pin for Shutdown mode; Built−in Under Voltage Lockout and Over Current Limit
A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the IC and connect it to a heat sink or a thermal plane.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a heat sink or thermal plane, and ensure good airflow around the IC. Additionally, consider using a thermistor or temperature sensor to monitor the IC's temperature and implement thermal shutdown or throttling if necessary.
The recommended input capacitor is a 10uF to 22uF ceramic capacitor with an X7R or X5R dielectric, and the recommended output capacitor is a 10uF to 22uF ceramic capacitor with an X7R or X5R dielectric. The capacitor values may vary depending on the specific application and operating conditions.
The output voltage of the NCP51401MNTXG can be adjusted by using a resistive divider network between the VOUT pin and the GND pin. The resistors should be chosen to provide the desired output voltage, and the total resistance should be in the range of 1kΩ to 10kΩ.
The maximum current that the NCP51401MNTXG can deliver is 1.5A. However, the actual current delivery may be limited by the input voltage, output voltage, and thermal conditions. It's essential to ensure that the IC is operated within its recommended operating conditions to avoid overheating or damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP51401MNTXG Overview

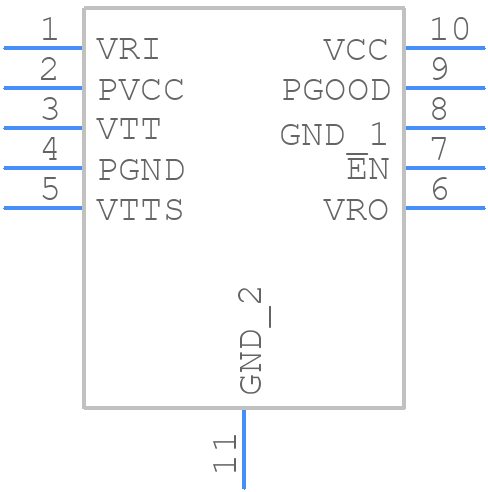

Use the download button to access the NCP51401MNTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP51,
or try a keyword search, such as Other Regulators
