NCP51402MNTXG - onsemi

Description: Input Voltage Rails: Supports 2.5 V, 3.3 V and 5 V Rails; PVCC Voltage Range: 1.1 to 3.5 V; Integrated Power MOSFETs; Fast Load−Transient Response; PGOOD − Logic output pin to Monitor VTT Regulation; VRI − Reference Input Allows for Flexible Input Tracking Either Directly or Through Resistor Divider; EN − Logic input pin for Shutdown mode; Built−in Under Voltage Lockout and Over Current Limit

Download NCP51402MNTXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

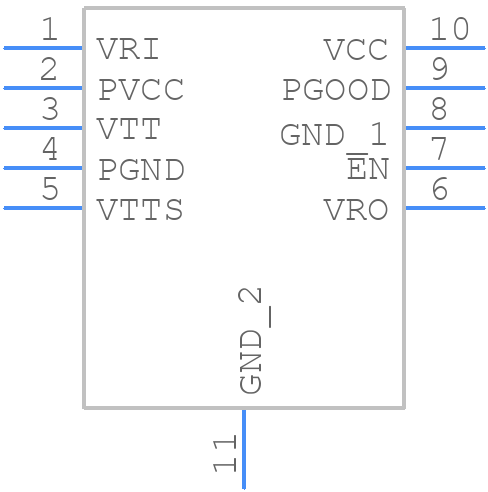

NCP51402MNTXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NCP51402MNTXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 506CL ISSUE O
click to zoom
3D Models
NCP51402MNTXG - onsemi - 3D model - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 506CL ISSUE O
click to zoom

NCP51402MNTXG Details

  • Manufacturer Part Number:

    NCP51402MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-10

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    506CL

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP51402MNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Ensure the input voltage is within the recommended range (4.5V to 18V) and the output voltage is set correctly using the FB pin. Also, ensure the input capacitor is properly sized and placed close to the device.
  • The maximum output current capability of the NCP51402MNTXG is 2A. However, the actual output current capability may be limited by the input voltage, output voltage, and thermal considerations.
  • Use an overvoltage protection (OVP) circuit and an undervoltage lockout (UVLO) circuit to protect the device from voltage transients and faults. The OVP circuit should trigger at a voltage higher than the maximum recommended input voltage, and the UVLO circuit should trigger at a voltage lower than the minimum recommended input voltage.
  • A low-ESR ceramic capacitor (X5R or X7R dielectric) with a value of 10uF to 22uF is recommended. The capacitor should be placed close to the device and connected between the VIN pin and the GND pin.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NCP51402MNTXG Overview

Use the download button to access the NCP51402MNTXG schematic symbol, PCB footprint, and 3D model.
