NCP51403MNTXG - onsemi

Description: Input Voltage Rails: Supports 2.5 V, 3.3 V and 5 V Rails; PVCC Voltage Range: 1.1 to 3.5 V; Integrated Power MOSFETs; Fast Load−Transient Response; PGOOD − Logic output pin to Monitor VTT Regulation; VRI − Reference Input Allows for Flexible Input Tracking Either Directly or Through Resistor Divider; EN − Logic input pin for Shutdown mode; Built−in Under Voltage Lockout and Over Current Limit

Download NCP51403MNTXG Model

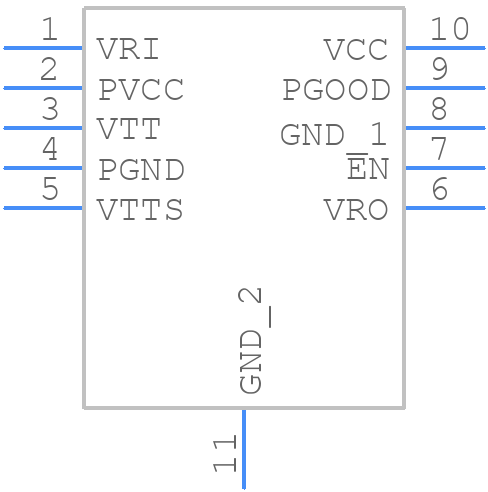

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP51403MNTXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 506CL ISSUE O
click to zoom
3D Models
NCP51403MNTXG - onsemi  - 3D model - Small Outline No-lead - DFN10, 3x3, 0.5P CASE 506CL ISSUE O
click to zoom

NCP51403MNTXG Details

  • Manufacturer Part Number:

    NCP51403MNTXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-10

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    506CL

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NCP51403MNTXG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Ensure good thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Monitor the junction temperature (TJ) and adjust the design accordingly.
  • The maximum allowed voltage on the EN pin is 6V. Exceeding this voltage may damage the device.
  • Yes, the NCP51403MNTXG is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability.
  • Use a systematic approach to troubleshoot issues. Check the power supply, input/output connections, and PCB layout. Consult the datasheet and application notes for guidance.
