Description:2.0 A Source, 3 A Sink Output Current Capability; Bootstrap Supply Voltage up to 150V; Typical Rise/Fall times 9 ns/7 ns with 1 nF load; Propagation delay 50 ns A version, 20 ns B version; Max 9 ns Delay Matching between Channels; Input cross-conduction prevention; Internal 80 ns Dead Time; Up to 50 V/ns; Enable pin
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for good airflow.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a heat sink or thermal pad, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper soldering techniques.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To troubleshoot OVP and UVP issues, check the input voltage levels, ensure proper voltage sensing, and verify that the protection thresholds are set correctly. Also, review the device's fault detection and response mechanisms to ensure they are functioning as expected.
To minimize EMI and ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering techniques, and ensure that the device is properly grounded. Additionally, consider using EMI filters and common-mode chokes to reduce emissions and improve immunity.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NCP51513ABMNTWG Overview

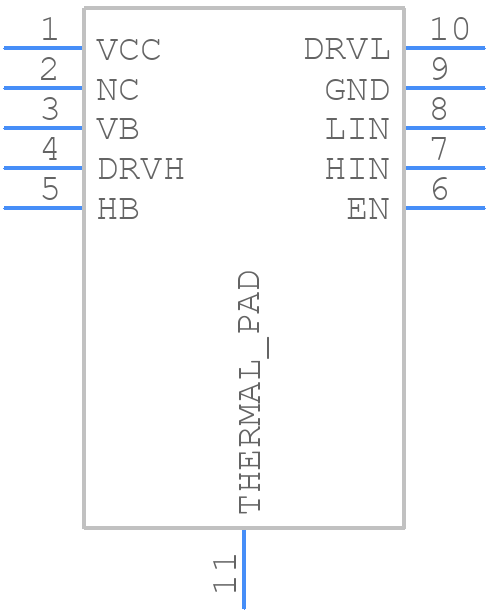

Use the download button to access the NCP51513ABMNTWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NCP51,
or try a keyword search, such as Peripheral Drivers
