NCP51530AMNTWG - onsemi

Description: High voltage range: Up to 700 V; DFN10 packaging with optimized pin-out; Fast Rise and Fall times (15 ns max); Very fast propagation delay (25 ns for B version); Matched propagation delay (7 ns Max); High dv/dt immunity up to 50 V/ns and negative transient immunity

Download NCP51530AMNTWG Model
Schematic

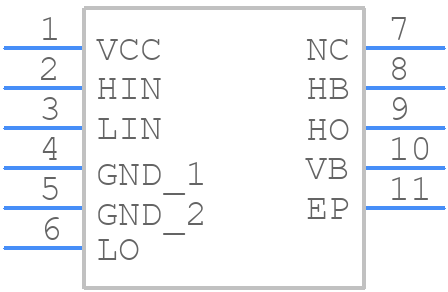

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP51530AMNTWG - onsemi PCB footprint - Other - Other - NCP51530AMNTWG-1
click to zoom
3D Models
NCP51530AMNTWG - onsemi  - 3D model - Other - NCP51530AMNTWG-1
click to zoom

NCP51530AMNTWG Details

  • Manufacturer Part Number:

    NCP51530AMNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-10

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    506DJ

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    3.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    700 V

  • Supply Voltage1-Min:

    -1 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    100 µs

  • Turn-on Time:

    100 µs

  • Width:

    4 mm

NCP51530AMNTWG Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing the device on a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and using thermal vias to connect the exposed pad to the ground plane. Additionally, keeping the copper traces wide and short can help to reduce thermal resistance.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, use a heat sink if necessary, and ensure that the device is operated within its specified temperature range. Additionally, using a thermistor or thermal sensor to monitor the device temperature can help to prevent overheating.
  • The maximum allowed voltage on the EN pin is 6V, as specified in the datasheet. Exceeding this voltage can cause damage to the device.
  • Yes, the NCP51530AMNTWG can be used in a switching regulator application, but it is recommended to follow proper design guidelines and ensure that the device is operated within its specified frequency range and current limits.
  • The power dissipation of the device can be calculated using the formula Pd = (Vin - Vout) x Iout x Efficiency, where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Efficiency is the efficiency of the device. The efficiency can be obtained from the datasheet or by measuring the device's performance.
