NCP51530BMNTWG - onsemi

Description: High voltage range: Up to 700 V; DFN10 packaging with optimized pin-out; Fast Rise and Fall times (15 ns max); Very fast propagation delay (25 ns for B version); Matched propagation delay (7 ns Max); High dv/dt immunity up to 50 V/ns and negative transient immunity

Download NCP51530BMNTWG Model
Schematic

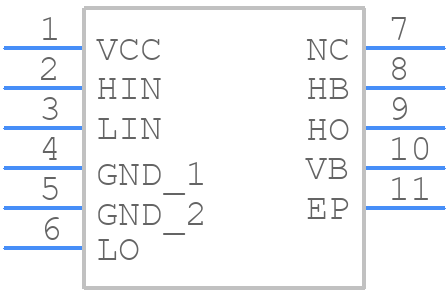

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP51530BMNTWG - onsemi PCB footprint - Other - Other - DFN10 4x4, 0.8P CASE 506DJ ISSUE O_2
click to zoom
3D Models
NCP51530BMNTWG - onsemi  - 3D model - Other - DFN10 4x4, 0.8P CASE 506DJ ISSUE O_2
click to zoom

NCP51530BMNTWG Details

  • Manufacturer Part Number:

    NCP51530BMNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN-10

  • Package Description:

    DFN-10

  • Manufacturer Package Code:

    506DJ

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    3.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Max:

    17 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    700 V

  • Supply Voltage1-Min:

    -1 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    40 µs

  • Turn-on Time:

    40 µs

  • Width:

    4 mm
