NCP51561BADWR2G - onsemi

Description: 4.5-A Peak Source, 9-A Peak Sink Output Current Capability; Output Supply Voltage from 6.5 V to 30 V with 5-V, 8-V, and 17-V UVLO threshold.; Propagation Delay Typical 36 ns with 8 ns Max Delay Matching per channel; User Programmable Input Logic for Single or Dual-input modes via ANB; Common Mode Transient Immunity CMTI > 200 V/ns; 5 kVrms Galvanic Isolation from input to each output & 1200 V peak differential voltage between output channels; User Programmable Dead-Time; Enable or Disable pin

Download NCP51561BADWR2G Model

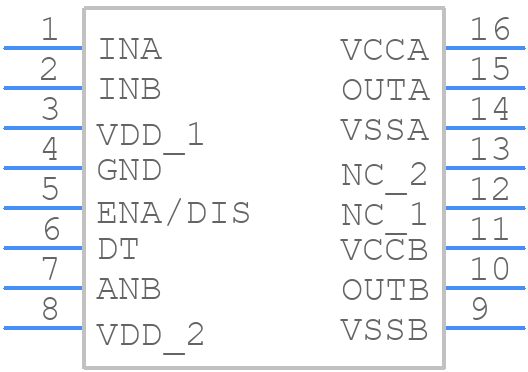

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NCP51561BADWR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-16 WB
click to zoom
3D Models
NCP51561BADWR2G - onsemi  - 3D model - Small Outline Packages - SOIC-16 WB
click to zoom

NCP51561BADWR2G Details

  • Manufacturer Part Number:

    NCP51561BADWR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-16W

  • Package Description:

    SOIC-16

  • Manufacturer Package Code:

    751G-03

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.75

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Peak Current Limit-Nom:

    9 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    30 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.058 µs

  • Turn-on Time:

    0.058 µs

  • Width:

    7.5 mm

NCP51561BADWR2G Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid ground plane, thermal vias under the IC, and a heat sink if possible. The datasheet provides some guidelines, but a more detailed application note is available from onsemi.
  • To ensure reliable start-up and shutdown, make sure to follow the recommended power-up and power-down sequences, and add a soft-start circuit to limit inrush current. Also, ensure that the input voltage is stable and within the recommended range.
  • To minimize EMI, use a pi-filter or a common-mode choke at the input, and add a ferrite bead or a capacitor at the output. Also, ensure that the PCB layout is optimized for noise reduction, with minimal loop areas and proper grounding.
  • Choose an output capacitor with a suitable capacitance value, voltage rating, and ESR (Equivalent Series Resistance) based on the output voltage, current, and ripple requirements. The datasheet provides some guidelines, but consult the capacitor manufacturer's datasheet for specific recommendations.
  • The NCP51561BADWR2G has an internal thermal monitoring circuit that shuts down the device if the junction temperature exceeds 150°C. It also has an over-temperature protection feature that limits the output current to prevent overheating.
